Air con pipes
By OE Match
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII Turbo 2010-13
- Porsche 997 MKII GT2 RS 2011-13

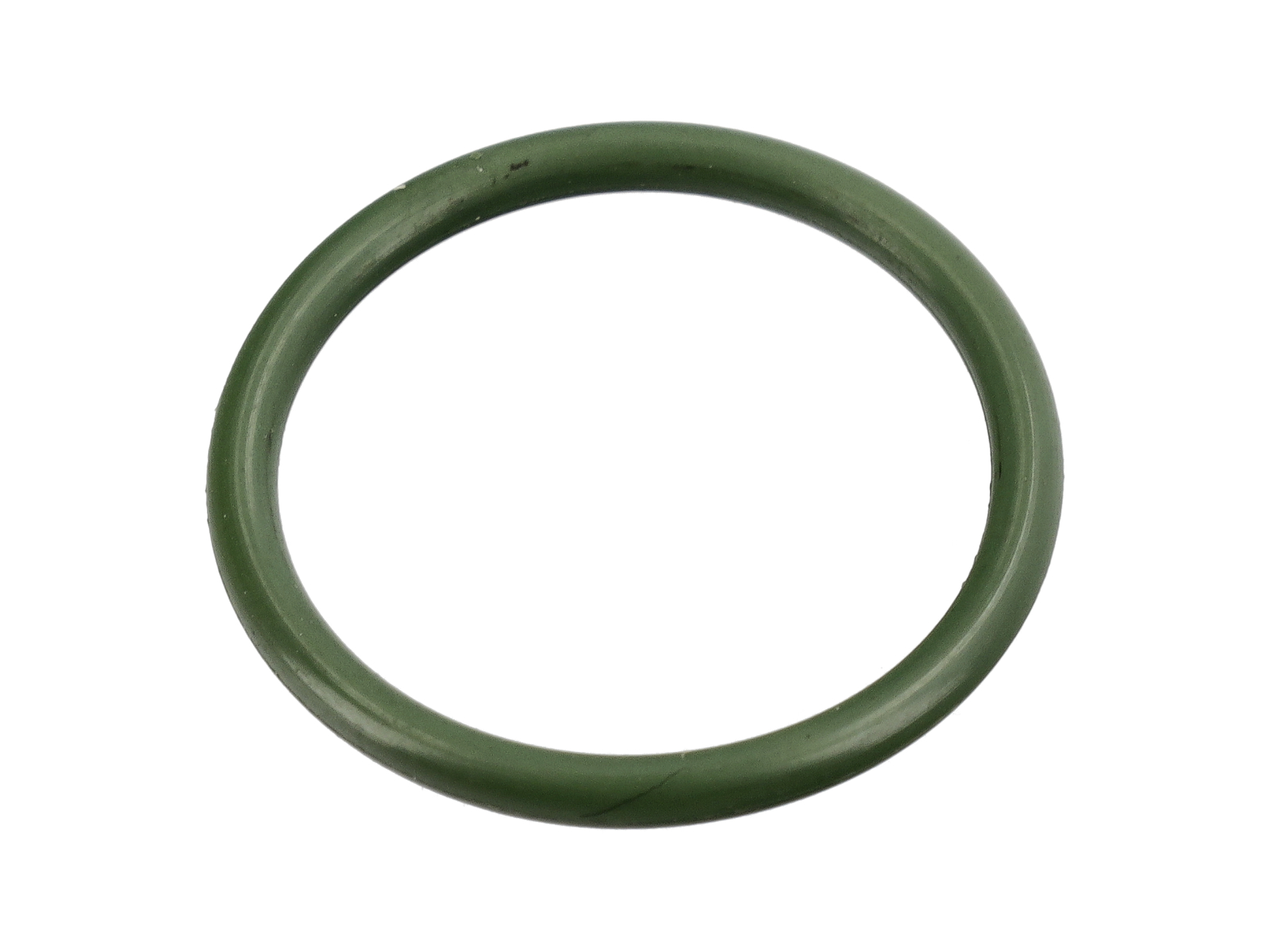

This O-ring provides a secure, leak-free seal at A/C line connections, helping maintain proper refrigerant pressure and system efficiency. Designed for direct replacement, it installs easily during A/C service or repair and helps restore factory-level air conditioning operation without modification.
Sold each.
Fits:
Porsche 964 1989 - 1994
Porsche 993 1995 - 1998
Porsche 996 1998 - 2005
Porsche 997.1 2005 - 2008
Porsche 997.2 2009 - 2012
Porsche 986 Boxster 1997 - 2005

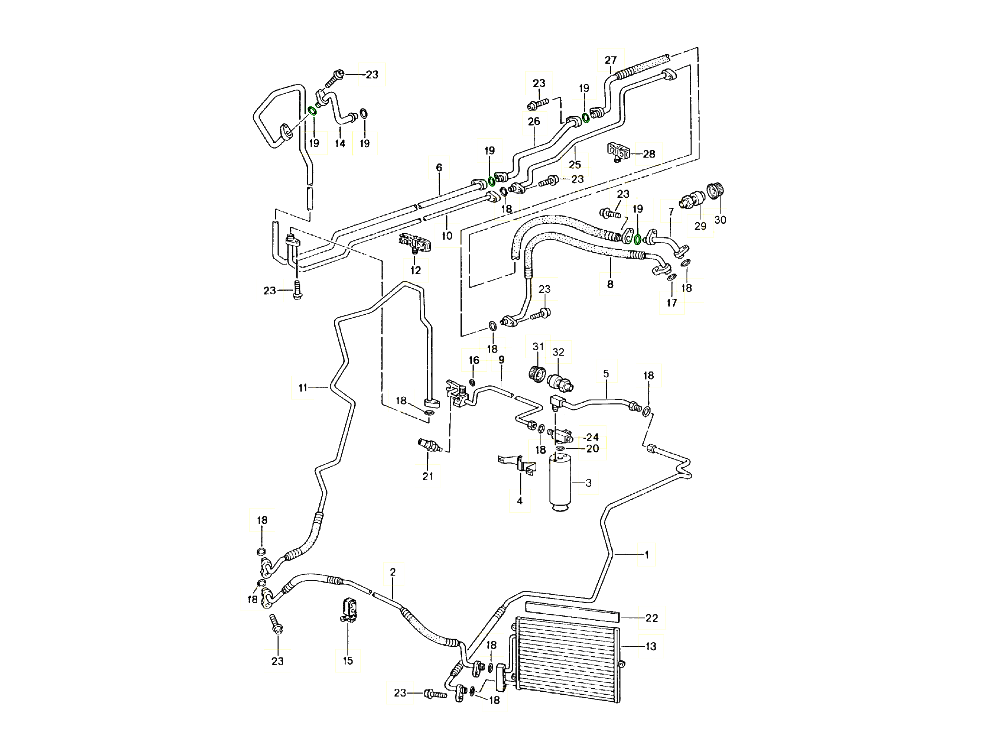

Diagram ref no 19
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99970753441
The product you are viewing cross references to these numbers
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005

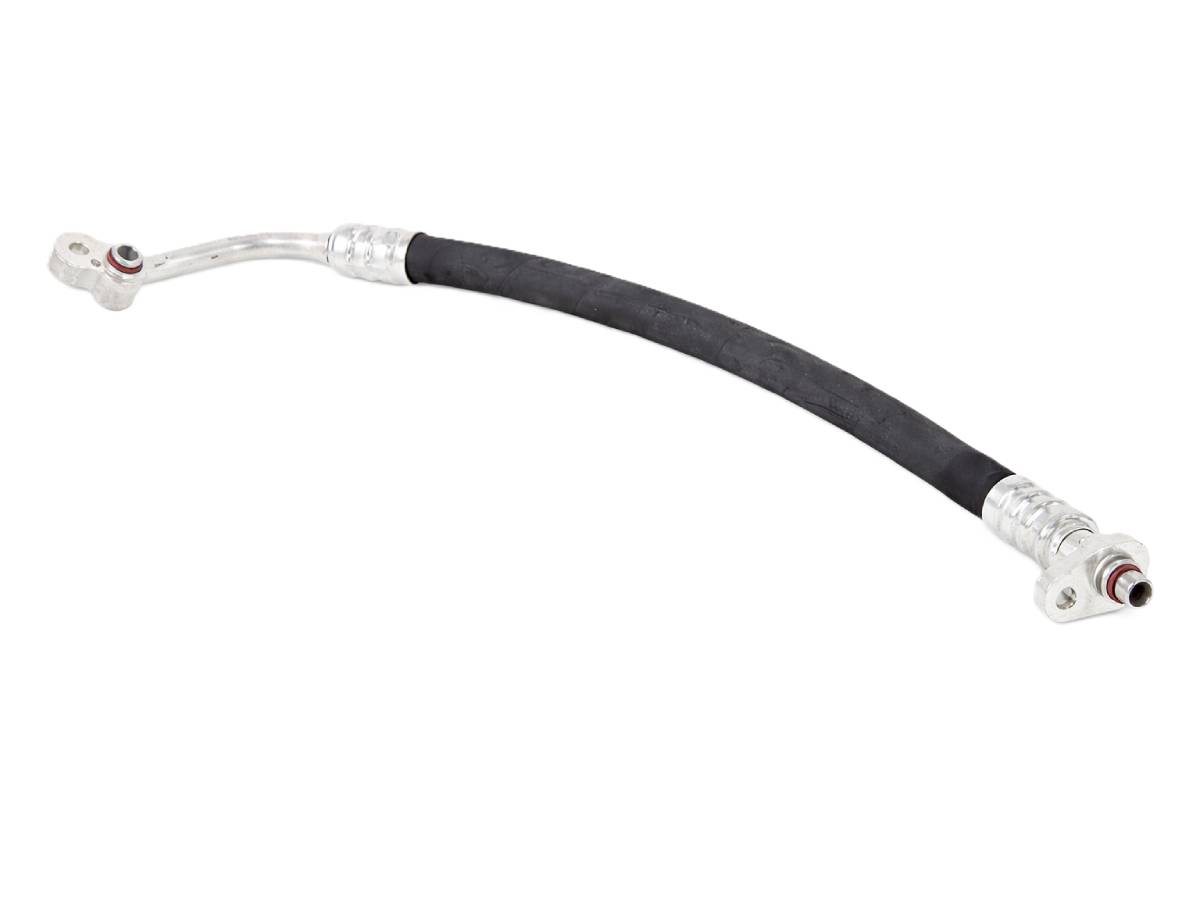

This Air Conditioning Pressure Line is a OE MATCH Porsche 996 component designed to carry high-pressure refrigerant within the vehicle’s air-conditioning system. Connecting the A/C compressor to other key components, this line ensures efficient circulation of refrigerant for optimal cooling performance.
Fits:
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005

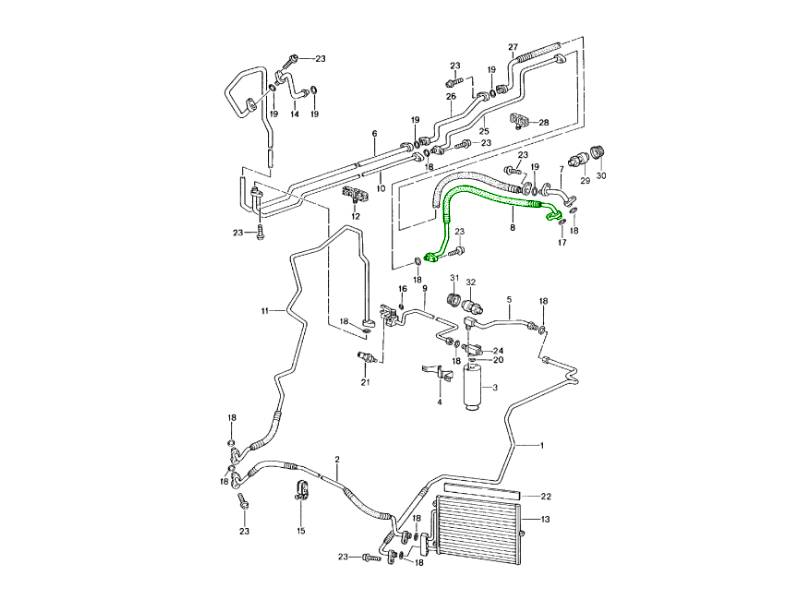

Diagram Ref No 8
What This Product Does:
- Transports high-pressure refrigerant through the A/C system
- Maintains correct system pressure for efficient cooling
- Supports consistent air-conditioning performance
- Prevents refrigerant loss when functioning correctly
- Ensures proper operation of the A/C compressor and system components
Symptoms Of Wear Or Failure:
- Weak or no cooling from the air-conditioning system
- Visible refrigerant leaks (often oily residue around the pipe)
- Hissing sounds from escaping gas
- A/C system unable to hold pressure
- Compressor cycling irregularly or failing to engage
Why Replacement Matters:
- Restores proper cooling performance
- Prevents refrigerant loss and system inefficiency
- Protects the A/C compressor and related components from damage
- Ensures correct pressure levels within the system
- Maintains cabin comfort, especially in warm conditions
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99657309706
The product you are viewing cross references to these numbers
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05

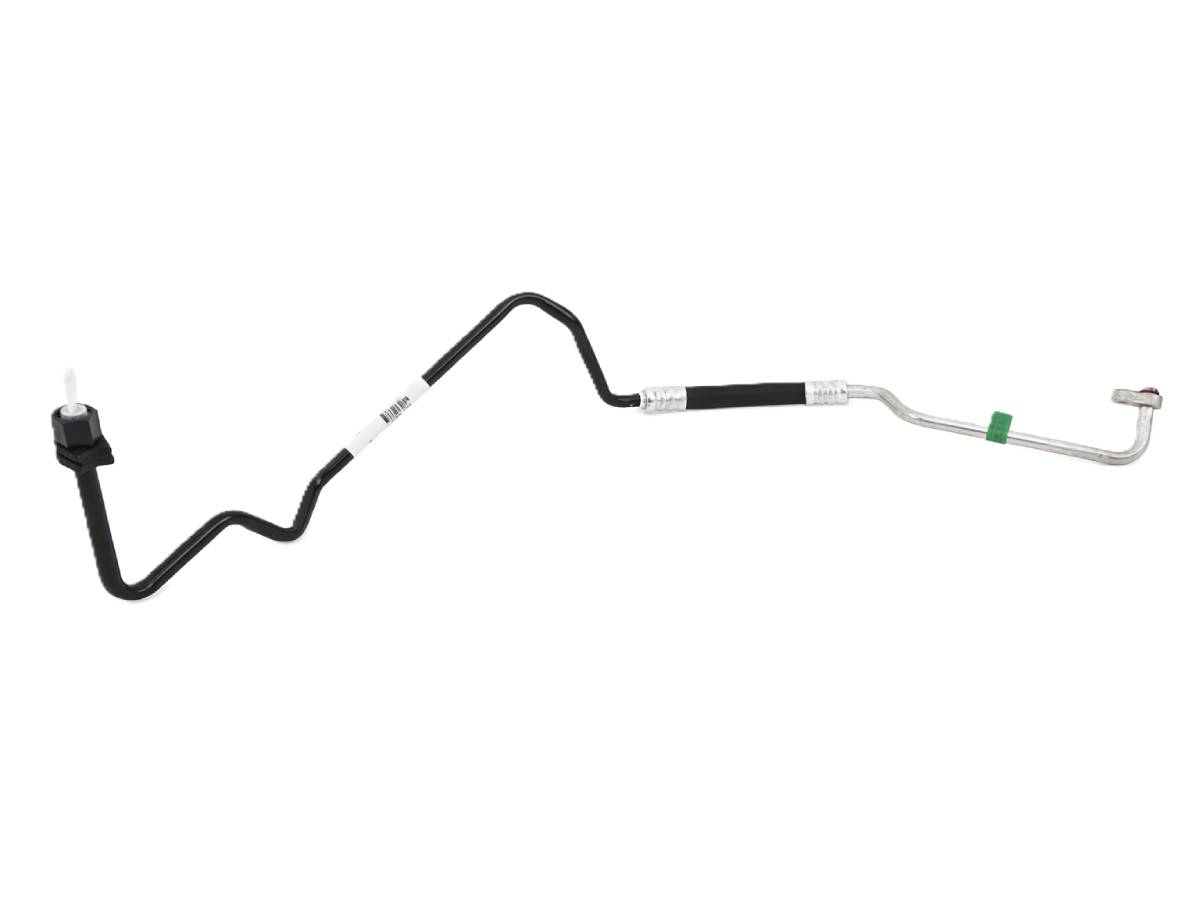

This Refrigerant Line, Condenser to Drier is a OE MATCH Porsche 996 component designed to transport refrigerant between the condenser and receiver drier within the vehicle’s air-conditioning system. This line plays a critical role in maintaining correct pressure and ensuring the refrigerant is properly filtered and dehumidified before continuing through the system.
Fits:
- Porsche 996 C4S 3.6L 2002-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05

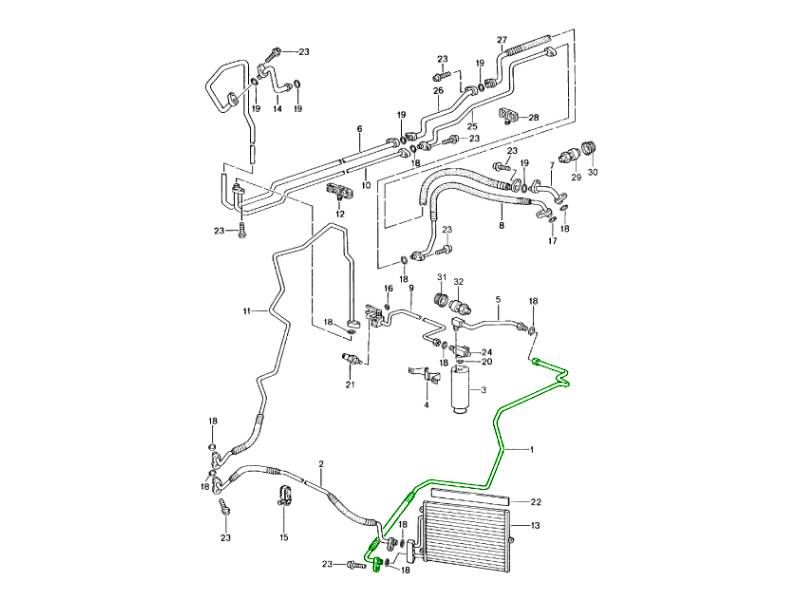

Diagram Ref No 1
What This Product Does:
- Transfers refrigerant from the condenser to the receiver drier
- Maintains correct system pressure for efficient cooling
- Supports moisture removal via the drier unit
- Ensures consistent A/C system performance
- Prevents refrigerant leaks when functioning properly
Symptoms Of Wear Or Failure:
- Weak or no air-conditioning performance
- Visible refrigerant leaks (often oily residue on the pipe or connections)
- Hissing sounds from escaping gas
- Moisture contamination within the A/C system
- Irregular compressor operation or failure to engage
Why Replacement Matters:
- Restores proper refrigerant flow and cooling performance
- Prevents moisture contamination that can damage internal components
- Protects the compressor and condenser from excessive strain
- Ensures correct system pressure and operation
- Maintains cabin comfort, especially in warm conditions
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99657310506
The product you are viewing cross references to these numbers
OEMatch Air con pipes — Fit, Function, Confidence
OEMatch supplies air con pipes for Porsche models, selected for application-specific needs. These lines carry refrigerant between the compressor, condenser and evaporator, maintaining pressure and enabling efficient cabin cooling. Replacing damaged or leaking pipes restores system integrity and helps prevent compressor damage and further component wear.
Understanding OEMatch Air con pipes
OEM (Original Equipment Manufacturer) parts are made by the same company that produced your Porsche’s original air con pipes.
OE (Original Equipment) refers to parts matching original specifications for the air con pipes and may be supplied by alternative manufacturers. Aftermarket parts offer alternative options, sometimes with enhanced features or better value. OEMatch supplies non-OEM air con pipes engineered as direct-fit alternatives to OEM parts, made to original-spec dimensions and tolerances for Porsche models. OEMatch also maintains an extensive selection of Porsche parts and a catalogue of cross-references to support sourcing and repair decisions.
Air con pipes form the network that links the compressor, condenser, evaporator and any service fittings. Correct routing, secure fittings and intact sealing surfaces ensure the circuit holds pressure, prevents contamination and supports efficient heat exchange. Materials commonly used include corrosion-resistant aluminium for hard lines and reinforced rubber for flexible hose sections; joints and O-rings are common leak points and require careful inspection when servicing.
Benefits Include
- Restores correct refrigerant circulation and operating pressure for dependable cooling.
- Reduces the risk of leaks and contamination that can damage the compressor and system internals.
- Improves resistance to corrosion and vibration through appropriate materials and routing.
Why Air con pipes Wear and Fail
- Corrosion and pitting from moisture, road salt or environmental exposure affecting metal lines.
- Rubber hose deterioration due to heat, ozone and age leading to cracks and softening.
- Mechanical damage from vibration, impact or incorrect routing plus degraded O-rings and seals.
The Importance of Replacing with OEMatch Air con pipes
Timely replacement of faulty air con pipes restores cooling efficiency and helps avoid more costly compressor or system repairs. New lines reduce the likelihood of slow leaks and contamination during servicing or restoration work. When fitting new pipes, replace associated O-rings and seals, verify correct routing and torque on fittings, and confirm the system holds pressure before recharge to maintain reliable climate control.
Advantages
- Constructed from aluminium and reinforced rubber where appropriate to balance strength and flexibility.
- Pre-formed bends and correct fittings preserve routing and clearance around engine and chassis components.
- Supplied ready for installation with appropriate connection styles to match service fittings and seals.
Available Types
- Aluminium refrigerant lines for fixed routing applications.
- Reinforced rubber hose assemblies for flexible connections and vibration isolation.
- Complete hose assemblies with fittings and O-rings for system repairs and rebuilds.
Support & Advice
Installation should be carried out by a qualified technician following model-specific procedures and torque settings. If you undertake simple checks, protect paintwork, confirm correct fittings and recheck fasteners after initial use.
