- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L

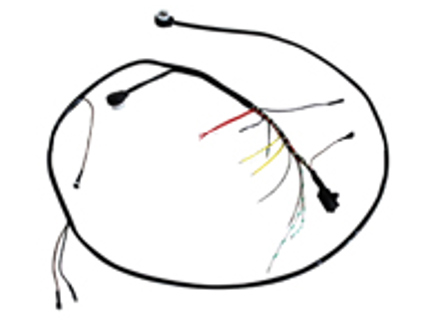

OE Match front headlamp wiring harness for Porsche 911 applications from 1974–86. This loom connects the fuse box with the headlamp and horn circuits in the front luggage compartment.
Fits
- Porsche 911 1974-86
Check fitment for your specific vehicle (model, year, engine) before ordering.
Diagram ref no 3
What This Product Does
The harness groups the wiring serving the front lighting and horn connections into an organised assembly. It is intended for repairs to this section of the vehicle's electrical installation, rather than replacement of the complete vehicle loom.
Functions
- Connects the fuse box to the headlamp wiring.
- Provides wiring for the horn circuit.
- Groups associated conductors within the front luggage compartment.
Technical Details
- Part reference: 91161200301.
- Brand: OE Match.
- Installation area: front luggage compartment.
Symptoms of Fault
- Headlamps operating intermittently or flickering.
- Loss of operation in an affected circuit.
- Repeated fuse failure associated with damaged wiring.
- Cracked insulation, rubbed-through covering or exposed conductors.
- Corroded terminals or loose electrical connections.
- Faults that change when the loom moves.
Why Replacement Matters
Renewal may be appropriate when inspection identifies damaged insulation, broken conductors, heat deterioration or unsuitable previous alterations. Establish the cause before replacing the loom: bulbs, fuses, earth connections and adjoining terminals can produce similar symptoms. Supporting connections should also be inspected so that an unresolved fault does not remain after fitting.
FAQs
Can a wiring fault be intermittent?
Yes. Movement or temperature changes can interrupt contact at a damaged conductor or connection.
What should be checked before replacement?
Inspect the routing, insulation, terminals, earth points and fuse condition. Continuity and voltage-drop testing can help locate the affected section.
Is this a complete vehicle wiring harness?
No. The supplied information identifies the front section serving the fuse box, headlamps and horn.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91161200301
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Fits:
Porsche 911 / 911S /Carrera 3.0 1976-77
Click 'Zoom in' for large parts diagram.
Diagram ref no 1
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91161201003
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Runs through the tunnel to the rear wiper motor
Does not include diode
Fits:
Porsche 911 1974-89 for LHD cars
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91161202501
The product you are viewing cross references to these numbers
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)
Fits:
Porsche 911 3.2 Carrera - 1987 to 1989
Click 'Zoom in' for large parts diagram.
Diagram ref no 13
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91163126100
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
This harness assembly is designed as a direct-fit replacement for the factory wiring loom that serves the driver’s-side door switch and window-regulator system on Porsche 911 models. It reconnects the control switch, window motor/regulator and associated connectors with OEM-style routing, connectors and insulation for restored function and reliability.
Fits:
Porsche 911 - 1969 to 1989
Diagram ref no 4
• Function: The harness carries the electrical connections for the power-window mechanism and associated door controls (switches, regulators) in the driver-side door module. Accurate harness fitment ensures consistent switch response, smooth window movement and prevents wiring stress or connector failure.
• Application: Driver’s-door wiring harness for power window and switch functions
• Over time, door harnesses are subject to moisture, wear from repeated window operation, hinge motion and vibration. Insulation may crack, connectors loosen or wires may become corroded - resulting in intermittent switch behaviour, non-functional windows or electrical faults. Replacing with a correct-spec harness restores reliable window/switch operation, prevents costly intermittent issues and supports long-term electrical integrity.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91161210401
