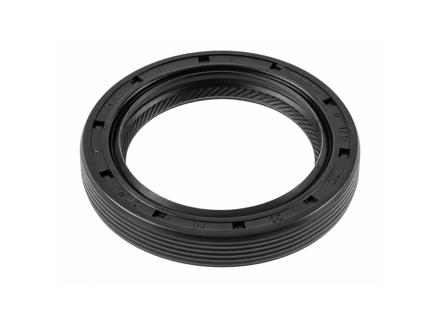

Connecting Shaft Oil Seal – PDK Gearbox
The OE Match Connecting Shaft Oil Seal is a replacement sealing component for selected Porsche 970 Panamera models fitted with a PDK gearbox.
Fits:
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Diagram Ref No 31
It maintains an oil-tight seal between the rotating shaft and transmission housing, helping preserve gearbox lubrication and protect internal components against premature wear.
Fitment is determined by the PDK gearbox code, not the model name alone. Porsche lists this seal for transmission codes C7030, C7035, C7050, C7031 and C7051.
Confirm compatibility using the vehicle VIN and gearbox code before ordering.
What Does It Do?
The oil seal prevents transmission fluid escaping where the connecting shaft passes through the gearbox housing.
It allows the shaft to rotate while maintaining a sealed transmission assembly, helping retain the lubrication required for reliable gearbox operation.
Why Is It Important?
The Porsche PDK gearbox relies on correct fluid levels to lubricate and protect its internal components.
A damaged connecting shaft seal can cause:
- Transmission oil leaks
- Reduced gearbox fluid levels
- Oil contamination around the gearbox housing
- Increased internal component wear
- Potential gearbox damage if fluid loss continues
Why Does It Fail?
Common causes of oil seal deterioration include:
- Ageing and hardening of the sealing material
- Repeated temperature changes
- Wear against the rotating shaft
- Contaminated transmission fluid Incorrect installation
- Damage to the shaft sealing surface
When Should It Be Replaced?
Replace the connecting shaft oil seal if:
- Transmission oil is leaking from the connecting shaft area
- The seal is cracked, hardened or damaged
- Oil residue is visible around the gearbox housing
- The seal is disturbed during transmission repairs
- The connecting shaft is removed during gearbox servicing
Always confirm the source of the leak before replacing the seal.
Checks & Installation
Inspect the connecting shaft, protective plate and surrounding gearbox housing for wear or damage.
Remove the original seal carefully and install the replacement using the correct Porsche workshop procedure and suitable installation tools.
Check the transmission fluid level and inspect for leaks after completing the repair.
Key Features
- OE Match replacement connecting shaft oil seal
- Porsche reference 97030288500Connecting
shaft oil seal
- Designed for selected Porsche 970 Panamera PDK gearboxes
- Seals the transmission connecting shaft
- Helps prevent gearbox oil leaks
- Maintains transmission lubrication
- Replacement for worn or damaged shaft seals
- Suitable for PDK gearbox repairs and servicing
Porsche 970 Panamera PDK Gearbox Oil Seals & Transmission Repair Parts
Correctly functioning gearbox seals are essential for preventing transmission oil leaks and maintaining reliable Porsche PDK operation.
The connecting shaft oil seal provides a replacement for selected Porsche 970 Panamera PDK transmissions, helping retain gearbox fluid and protect internal components against lubrication loss.
Replacing a worn or leaking seal helps restore the original gearbox sealing arrangement and reduce the risk of further transmission damage.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97030288500
The product you are viewing cross references to these numbers
