Oil Separators & Vent lines
By OE Match
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16

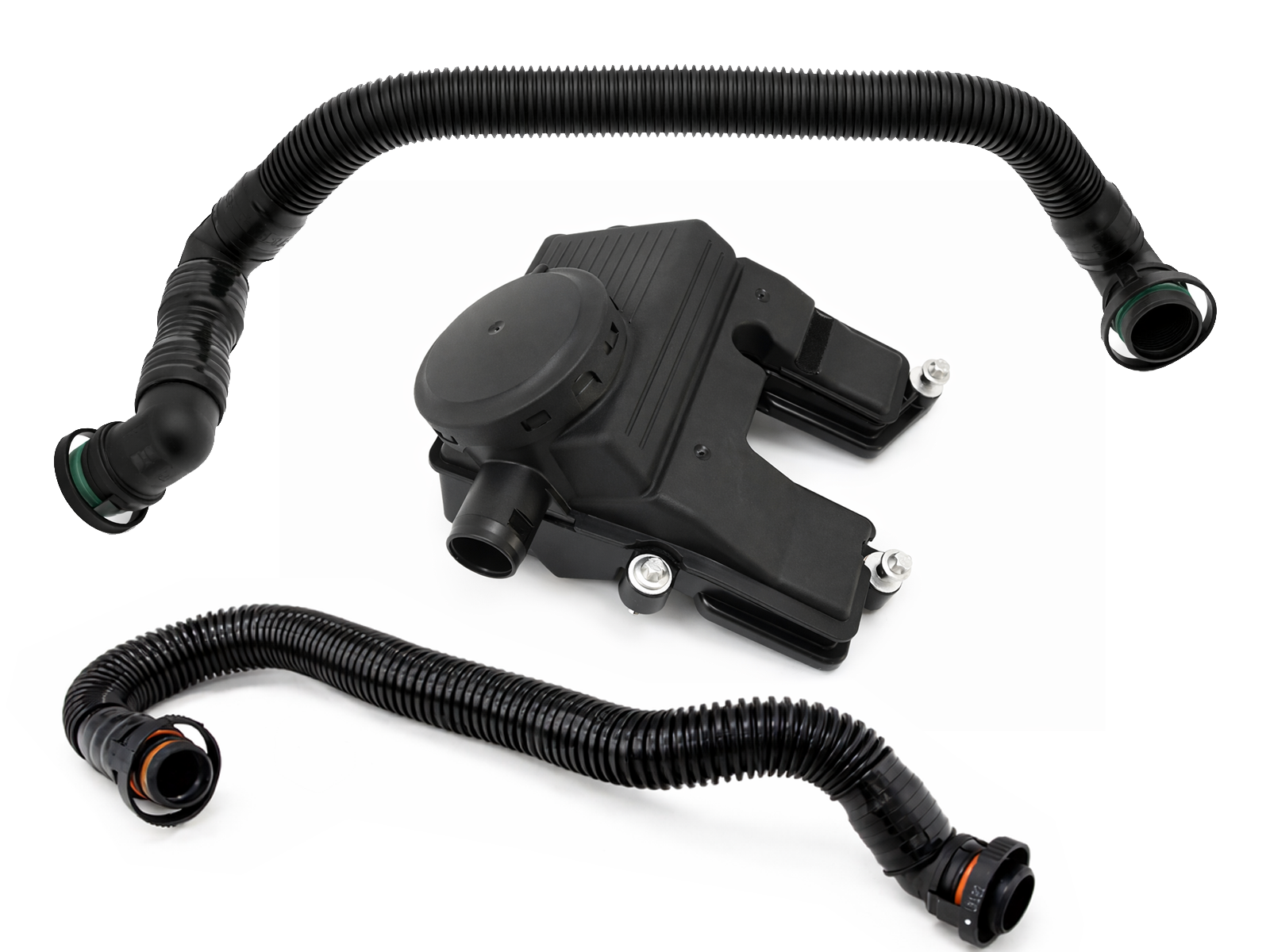

This Air/Oil Separator Kit is a direct-fit engine crankcase ventilation service set for V8 Porsche models. It includes an OE Match Air/Oil Separator plus two high-quality OE Match crankcase breather hoses - engineered to replace factory-aged components that can degrade from heat, oil vapor exposure, and age.
Fits:
Porsche 958 Cayenne S 4.8L 2011 - 2018
* engine code: 4802
Porsche 970 Panamera S / GTS 4.8L 2010 - 2013
* engine codes: 4820,4840
Porsche 970 Panamera GTS 4.8L 2014 - 2016
* engine codes: CXPA,CXRA, CXR

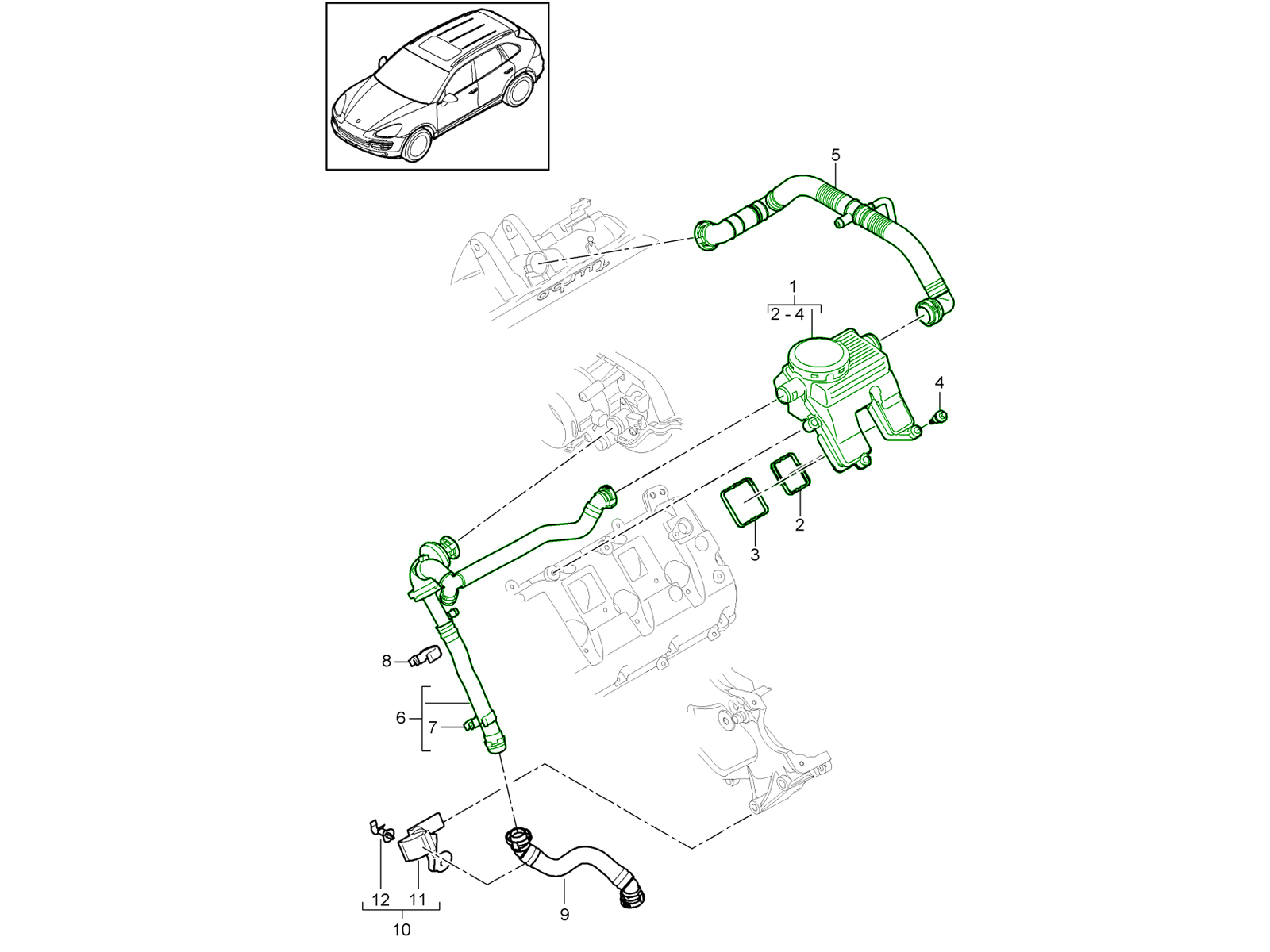

Diagram ref no 1, 5 and 6
The kit comprises critical crankcase ventilation parts used in high-performance Porsche engines to separate oil from air in the crankcase breather circuit and return clean air back into the intake system. The air/oil separator captures oil mist and blow-by gases that form in the crankcase, preventing oil from entering the intake while ensuring the engine breathes correctly under load. The breather hoses are OE Match-engineered flexible tubes that connect the separator to the crankcase and intake ports, maintaining correct airflow paths and preventing vacuum leaks.
This complete kit allows for a professional service of the crankcase ventilation system in one go, ensuring proper sealing and restored functionality.
The air/oil separator collects and filters blow-by vapours that form during combustion, separating oil droplets from the air and returning them to the crankcase. This prevents oil consumption, reduces smoky exhaust and keeps the intake tract clean. It also regulates crankcase pressure so that seals, gaskets and piston rings remain protected.
The crankcase breather hoses maintain the pathways between engine crankcase ports and the separator, ensuring smooth, controlled airflow and preventing oil-laden air from contaminating intake components. Without functioning hoses, vacuum leaks and crankcase pressure imbalances can occur, leading to poor engine performance and increased oil spray inside the engine compartment.
Over time, the air/oil separator and breather hoses can clog with oil residue, harden, crack, or lose their ability to properly separate oil from air — especially on high-mileage engines or vehicles subjected to frequent high RPM use.
Failure of these components can lead to:
• Increased oil consumption and smoky exhaust
• Contamination of the intake and turbocharger with oil mist
• Erratic crankcase pressure, leading to gasket leaks
• Poor idle quality or check engine codes related to crankcase pressure
Replacing them with this OE Match kit helps restore correct crankcase ventilation system performance, protects your engine internals and maintains smooth engine operation.
Replace the air/oil separator kit if you notice any of the following:
• Visible oil residue around the separator or hoses
• Excessive oil consumption
• Smoke or oil smell from the tailpipe
• Engine runs poorly at idle or under load
• Fault codes pointing to crankcase pressure issues
• Hose cracks, split rubber, or visibly brittle components
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
OILSEPARATOR.958S.OEM
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16

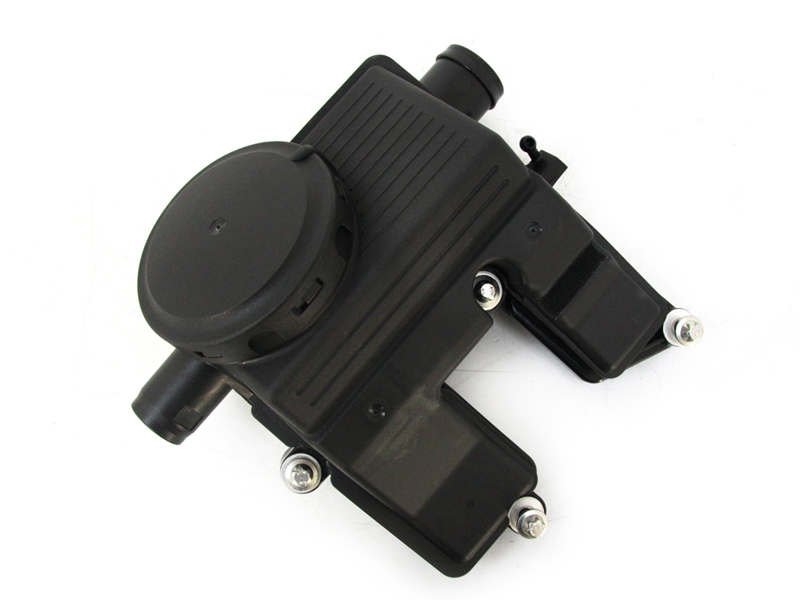

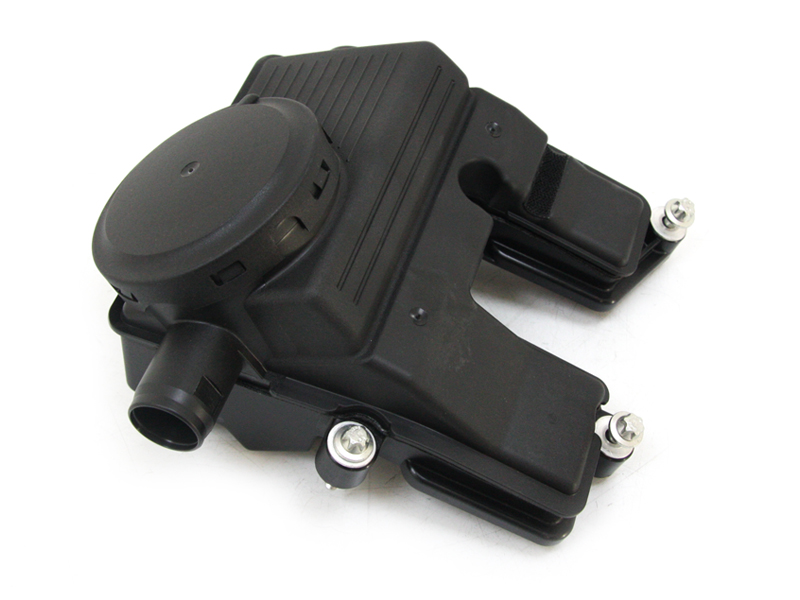

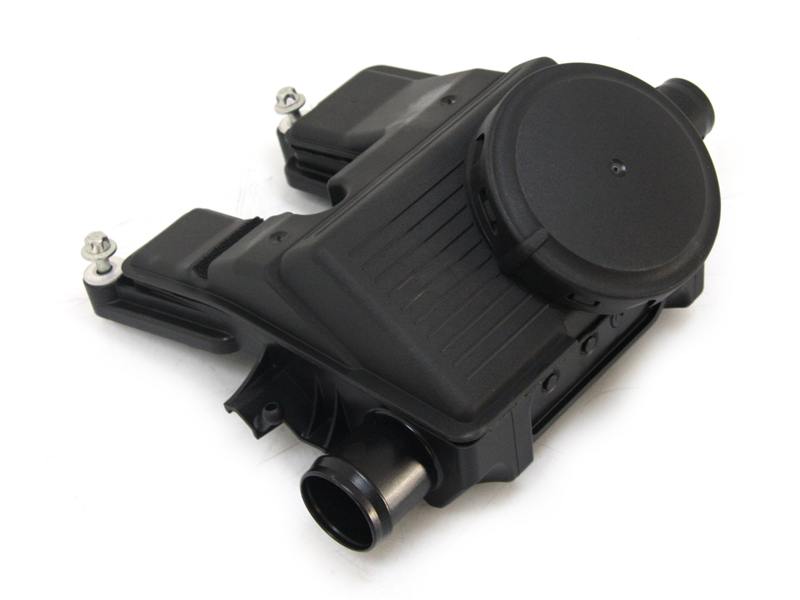

This Comes with the Gasket.
Fits:
Porsche 958 Cayenne S 4.8L / GTS 4.8L 2011-14
Porsche 958 Cayenne Turbo 4.8L 2011-18
Porsche 970 Panamera 3.6L 2011-16
Porsche 970 Panamera S 4.8L 2010-13
Porsche 970 Panamera GTS 4.8L / Turbo 4.8L 2010-16

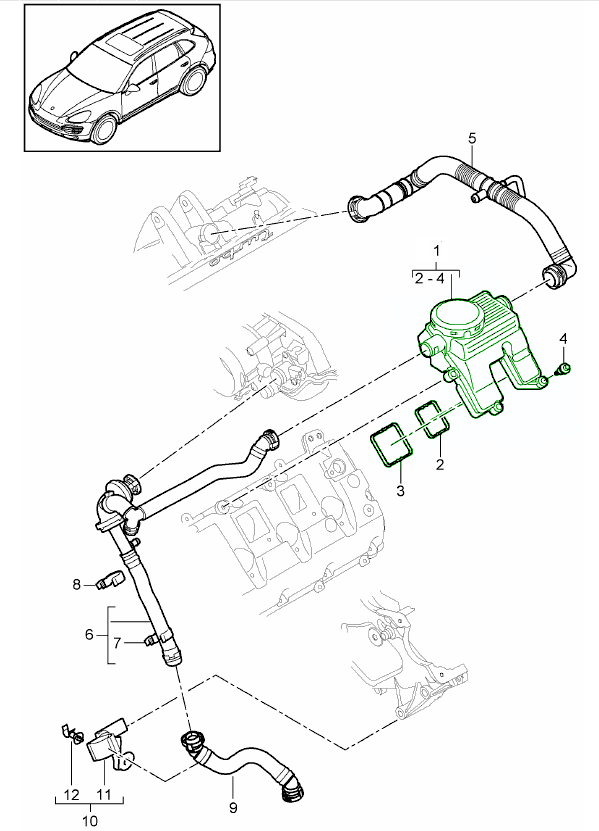

Click 'Zoom in' for large parts diagram.
Diagram ref no 1
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810713522
The product you are viewing cross references to these numbers
OEMatch Oil Separators & Vent lines — Durability, Sealing, Performance
The oil separator and vent line system manages crankcase ventilation on Porsche engines by separating oil vapour from blow-by gases and returning cleaner air to the intake. Properly functioning separators and breather hoses reduce oil contamination and help preserve throttle response, idle quality and long-term engine cleanliness. OEMatch supplies replacements and related hoses prepared for Porsche applications to support routine maintenance and rebuilds.
Available Types- Oil separators (breather housings)
- Breather hoses and vent lines
- Seals, grommets and connection fittings
OE (Original Equipment) refers to parts matching original specifications for the oil separators & vent lines and may be supplied by alternative manufacturers. Aftermarket parts offer alternative options, sometimes with enhanced features or better value. OEMatch supplies non-OEM oil separators & vent lines engineered as direct-fit alternatives to OEM parts, made to original-spec dimensions and tolerances for Porsche models.
The oil separator and vent system controls crankcase pressure, removes oil vapour from circulating gases and keeps intake air free of oil droplets.
When functioning correctly the system prevents oil entering the intake tract, reduces smoke and limits carbon build-up on inlet valves and ports. OEMatch also maintains a catalogue of more than 4,000 individual part numbers and over 8,700 OE cross-references to aid correct selection for Porsche applications.
- Restores clean airflow and stable crankcase pressure
- Reduces oil leaks, blue smoke and carbon accumulation
- Supports consistent idle and throttle response
- Clogged or degraded internal membranes inside separators
- Cracked, hardened or collapsed breather hoses due to heat and age
- Worn seals, grommets or connection points causing leaks
- Vacuum leaks affecting idle and throttle response
- Sludge or condensation build-up inside vent lines
Replacing a worn or damaged separator or vent line restores correct crankcase breathing and helps avoid progressive engine issues such as oil contamination, valve deposits and inconsistent running. Fitted components specified for Porsche engines help preserve emissions performance and reduce the risk of oil reaching the intake tract. Select parts that match the original connections and materials for reliable long-term operation.
Advantages- Direct-fit replacements engineered to match original dimensions and tolerances
- Components manufactured in heat- and oil-resistant materials for longevity
- Catalogue cross-references and part numbers to support correct selection for Porsche models
Installation should be carried out by a qualified technician following model-specific procedures and torque settings. Use calibrated tools and new fasteners where specified. If you are unsure about hidden sensors or routing, seek professional installation to ensure correct sealing and operation.
