- Porsche 992.1 Carrera 2 3.0L 2019-24
- Porsche 992.1 Carrera 4 3.0L 2019-24
- Porsche 992.1 Carrera 2 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4 Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4 3.0L 2020-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo S 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
- Porsche 992.1 Turbo S Cabriolet 3.8L 2020-24
- Porsche 992.1 (911) Sport Classic 3.8L 2023
- Porsche 992.2 Carrera 2 3.0L 2024>>
- Porsche 992.2 Carrera 2 GTS 3.6L 2024>>
- Porsche 992.2 Carrera 4 GTS 3.6L 2024>>
- Porsche 992.2 Carrera 2 3.0L Cabriolet 2024>>
- Porsche 992.2 Carrera 2 GTS 3.6L Cabriolet 2024>>
- Porsche 992.2 Carrera 4 GTS 3.6L Cabriolet 2024>>
- Porsche 992.2 Targa 4 GTS 3.6L 2024>>
Fits:
Porsche 992.1 Carrera MKI 2019>>2024
Cars With Option Codes:
1X1 - Four-Wheel Drive
1X2 - Rear-Wheel Drive
A8C - Comfort Equipment
A8F - Sports Equipment
Porsche 992.2 Carrera MKII 2024>>
Porsche 992.1 Turbo / Turbo S MKI 2020>>
Cars With Option Codes:
E0A - No Special Edition
E8R - Special Model "911 Sport Classic"
E8A - "Turbo S"
Why they should be replaced

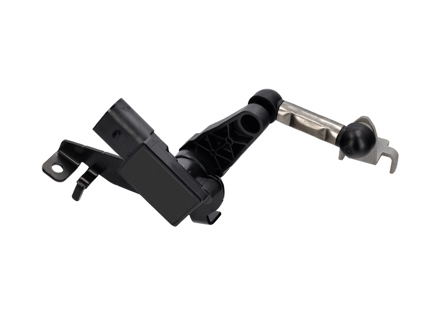

You should replace a front level sensor when it is failing, damaged, or giving incorrect readings that the car’s control modules detect. Typical symptoms that indicate a replacement is required:
- Suspension / “ride height” warning or “front axle lift malfunction” message on the instrument cluster.
- The front lift will not operate (won’t raise or won’t lower) or the car is stuck in a lift/stuck at minimum height.
- Diagnostic trouble codes indicating a ride-height / level sensor fault (the suspension module reporting implausible or missing signals). (Use a Porsche-capable diagnostic tool to read these codes.)
- Intermittent faults that clear after tapping the sensor/connector or faults that appear after exposure to water / road debris.
Common failure modes / issues
· Seized or broken linkage ball/socket joints — the little plastic/steel ball joints that connect the sensor lever to the control arm can corrode or seize, causing stuck or incorrect readings. This is often visible on inspection.
· Water ingress / corroded connector — moisture in the sensor connector or wiring harness causes intermittent faults or total failure. Owners commonly report faults after heavy rain / pressure-washing.
· Internal sensor failure — the sensing element (potentiometer or magnetic/Hall element inside) can fail electrically over time. After this, readings are wrong or no signal at all.
· Wiring or ECU/module issues — sometimes the sensor is replaced but the issue was connector/wiring damage or a control module problem; always verify wiring/connector and live data.
Diagram Ref No 21
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99261621
The product you are viewing cross references to these numbers
