- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII Turbo 2010-13

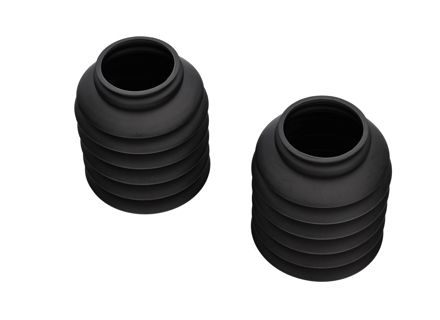

OE Match shock absorber strut bellows for selected Porsche 996 and 997 applications, supplied as two Front protective covers. These bellows shield the damper rods from dirt and debris.
Fits
- Porsche 996 C4 / C4S 1997-05
- Porsche 996 Turbo 1999-05
- Porsche 997 C4 / C4S 2005-12 (MKI & MKII)
- Porsche 997 Turbo 2007-12 (MKI & MKII)
- Porsche 997 GT3 2010>>
Check fitment for your specific vehicle (model, year, engine) before ordering.
What This Product Does
A strut bellows provides a flexible protective covering around the exposed damper rod, accommodating suspension movement while limiting contamination. It is a protective component rather than a shock absorber, mounting bearing or bump stop.
Functions
- Shields the damper rod against road dirt and debris.
- Maintains protective coverage as the suspension moves.
Technical Details
- Supplied quantity: two bellows.
- Position specified for this set: Front.
- Component reference: 99634350901.
- Brand: OE Match.
- GT3 restriction: use only with shock absorber 997.333.051.99; the supplied diagram records the application note as 10-.
Symptoms of Fault
- Visible cracks, splits or missing sections in an existing cover.
- A displaced bellows leaving the damper rod exposed.
- Rattling associated with a loose or damaged dust cover; inspect adjacent hardware before attributing the noise to the bellows.
Why Replacement Matters
Renewing damaged bellows restores the protective covering around the damper rod. During damper servicing, inspect both covers alongside the mounts, bearings and bump stops rather than automatically reusing deteriorated components. A new cover will not correct leakage or internal damper wear.
FAQs
Are two bellows included?
Yes, this set contains two protective bellows.
Should these be checked when changing dampers?
Yes. Examine the covers for damage and confirm that they fit the replacement dampers.
Does the GT3 application have a restriction?
Yes. The supplied diagram specifies use only together with shock absorber 997.333.051.99.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99634350901
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) TURBO S 1994-97
This mount is engineered to the original Porsche specification for the front upper shock/strut mount assembly on the Porsche 911 (993) series (1994-98). It supports the strut assembly while isolating road and suspension vibration from the chassis.
Sold each, 2 required per vehicle.
Porsche 993 1994 - 1998 (not RS)
Diagram ref no 2
• Direct fit replacement, matching OEM dimensions, mounting points, and bearing or mounting hardware.
• Location: Front axle, upper shock/strut assembly mount, fits left or right shock absorbers.
• Designed to maintain proper strut angle, absorb vibration, and ensure geometry and ride comfort.
The front strut mount endures high loads, road vibration and pivoting motion of the suspension. A worn or failed mount can lead to clunking noises, poor alignment, erratic tyre wear or degraded ride comfort.
Replacing with a new replacement unit restores the correct mount geometry, the proper bearing or bushing action, and helps maintain the precise handling and comfort expected from the Porsche 993 platform.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99334301800
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Shock Absorber Bump Stop - Front
Sold each - 2 required per car
The OE Match Shock Absorber Bump Stop is a replacement
suspension component designed to limit excessive suspension compression.
Fits:
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Diagram ref no 5
It provides a cushioning effect when the suspension approaches the end of its travel, helping protect the shock absorber and surrounding components from damage.
What Does It Do?
The bump stop cushions the suspension during heavy compression, reducing the risk of the shock absorber reaching the end of its travel abruptly.
Why Does It Fail?
Common causes include:
- Age-related material deterioration
- Repeated suspension compression
- Exposure to road dirt and moisture
- Cracking or splitting
- Damage during shock absorber removal
When Should It Be Replaced?
Replace if the bump stop is cracked, crumbling, compressed or missing.
Inspection is recommended when replacing shock absorbers, springs or other suspension components.
Checks & Diagnosis
Inspect the bump stop for visible deterioration and check the shock absorber for leaks or damage.
Harsh impacts over bumps or excessive suspension bottoming may indicate worn suspension components requiring investigation.
Key Features
- OE Match replacement shock absorber bump stop
- Suitable for applicable Porsche 964 and 993 models
- Cushions excessive suspension compression
- Helps protect shock absorbers from damage
- Ideal for suspension servicing and restoration
Porsche 964 & 993 Shock Absorber Bump Stops and Suspension Parts
Shock absorber bump stops are important components of the Porsche 964 and 993 suspension systems, helping control suspension travel and protect shock absorbers during heavy compression.
Replacing deteriorated bump stops helps maintain suspension protection and supports reliable operation.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
96434330100
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
SET OF 4 PARTS
Fits:
Porsche 964 1989-94 (not RS)
Porsche 993 1994-98 (not RS)
Click 'Zoom in' for large parts diagram.
Diagram ref no 5 and 6.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
96434330100
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
Please also add top mounts if you required them
Including shock absorber Bellow, Bump Stop, supporting plate, Compensating plate, Washers & Nut.
Fits: (not M030 or RS models)
Porsche 964 (911) C2 1989-93
Porsche 964 (911) C4 1989-93
Porsche 993 (911) C2 1994-97
Porsche 993 (911) C4 1994-97
Porsche 993 (911) C2S 1994-97
Porsche 993 (911) C4S 1994-97
Parts Diagram ref No's 3, 4, 5, 6, 7, 8, 10, 15
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
SUSPENSIONKIT30X
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
