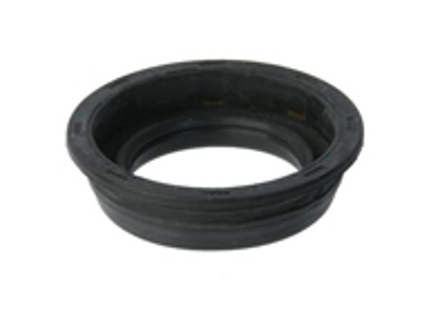

- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
Fits:
Porsche 955 4.5L Cayenne S / Turbo 2003-06
Click 'Zoom in' for large parts diagram.
Diagram ref no 4
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810593400
The product you are viewing cross references to these numbers
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Sold each - 2 required per car
Fits:
Porsche 958 4.8L Cayenne S 2011-14
Porsche 958 4.8L Cayenne GTS 2013-14
Porsche 958 4.8L Cayenne TURBO 2011-18
Porsche 970 3.6L Panamera 2010-16
Porsche 970 4.8L Panamera S 2010-13
Porsche 970 4.8L Panamera GTS 2013-16
Porsche 970 4.8L Panamera TURBO 2010-16
Click 'Zoom in' for large parts diagram.
Diagram ref no 9
Price is for each
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810505123
The product you are viewing cross references to these numbers
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Actuator Camshaft / VVT Solenoid – Porsche Cayenne 955 S /
Turbo (2005>>)
OEM ref: 94810530407
This camshaft actuator (variable valve timing / VVT solenoid) controls the oil flow to the camshaft adjuster, allowing the engine ECU to advance or retard cam timing. On Porsche Cayenne 955 S and Turbo models from 2005 onwards, a healthy actuator is essential for smooth power delivery, good fuel economy and clean emissions.
Compatible with :
- · Porsche 957 Cayenne S/GTS 4.8L 2007-10
- · Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- · Porsche 958 Cayenne S V8 4.8L Petrol 400HP 2010-17
- · Porsche 958 Cayenne GTS V8 4.8L Petrol 400HP 2010-17
- · Porsche 958 Cayenne Turbo V8 4.8L Petrol 500HP 2010-17
- · Porsche 958 Cayenne Turbo S V8 4.8L Petrol 550HP 2010-17
- · Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- · Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- · Porsche 970.1 Panamera S V8 4.8L 2009-13
- · Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- · Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- · Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- · Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- · Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- · Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- · Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- · Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- · Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- · Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Why these should be replaced
Over time the original actuator is exposed to hot engine oil, varnish deposits and general wear. This can cause the internal valve to stick or slowdown, which means the cam timing can no longer be adjusted correctly. Replacing tired actuators:
Restores correct camshaft timing and engine performance Improves throttle response and mid-range torque Helps cure rough idle and hesitation under load Can reduce fuel consumption and emissions Prevents further damage to camshaft adjusters and associated components
On many Cayenne V8 engines, Porsche and independent specialists recommend replacing faulty VVT solenoids in pairs (one per cylinder bank) to ensure balanced timing and avoid repeat labour costs.
Common issues / symptoms of a failing camshaft actuator
Typical signs that this part needs replacement include:
Check Engine Light with camshaft timing faults (e.g. “camshaft position – timing over-advanced/retarded”) Rough idle, misfires or stalling, especially when hot Flat spots or loss of power in the low–mid rev range Poor fuel economy compared with normal Rattling / ticking on start-up if the timing cannot be adjusted correctly Fault codes relating to Variable Valve Timing (VVT) solenoid / camshaft actuator
If these symptoms are present and other basic checks (oil level/quality, wiring, connectors) are OK, the camshaft actuator is a prime suspect.
Click 'Zoom in' for large parts diagram.
Diagram ref no 29
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810530407
The product you are viewing cross references to these numbers
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne S V8 4.2L Diesel (382Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Fits:
Porsche 957 Cayenne S / GTS / Turbo 2008-10
Porsche 958 Cayenne S / GTS / Turbo 2011-18
Porsche 970 Panamera 2011-15
Click 'Zoom in' for large parts diagram.
Diagram ref no 6
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810511400
The product you are viewing cross references to these numbers
