Intermediate Shaft
By OE Match
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
2 x Bearing shell for intermediate shaft (with shoulder).
Set of 4pcs
Set of 4 includes four bearing shells for the intermediate shaft. This bearing set is used to control axial play and radial support of the intermediate shaft. These precisely machined shells maintain the correct end-float, allowing accurate cam timing and smooth chain drive function under high RPM loads.
Fits:
Porsche 911 - 1965 to 1989
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998
Porsche 996 turbo / GT2 / GT3
Porsche 997.1 turbo / GT2 / GT3
Porsche 997.2 GT2 / GT3
Diagram ref no 29 & 30.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610143571
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
Fits:
Porsche 911 - 1965 to 1989
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998
Porsche 996 turbo / GT2 / GT3
Porsche 997.1 turbo / GT2 / GT3
Porsche 997.2 GT2 / GT3
This product supersedes Porsche's old part numbers:
- 90110113500
- 99310113500
Diagram ref no 30.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610143571
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII GT2 RS 2011-13
- Porsche 914 (1970-1976)
Sold as PAIR / Requires 1 pair per engine
Pair, includes two bearing shells for the intermediate shaft, with one shell having a thrust shoulder. This bearing set is used to control axial play and radial support of the intermediate shaft. These precisely machined shells maintain the correct end-float, allowing accurate cam timing and smooth chain drive function under high RPM loads.
Fits:
Porsche 911 - 1965 to 1989
Porsche 914/6 - 1970 to 1976
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998
Porsche 996 turbo / GT2 / GT3
Porsche 997.1 turbo / GT2 / GT3
Porsche 997.2 GT2 / GT3
This product supersedes Porsche's old part numbers:
- 91610113700
- 99310113700
- 99310113701
Diagram ref no 29.
These high-quality bearings resist wear, maintain stability under loading, and reduce friction. The shoulder shell is designed to handle axial load and keep the shaft from shifting. Both shells are matched to OE tolerances for crush and thickness to preserve ideal oil film clearance and ensure long life.
• Location: Inside the engine case, at the intermediate shaft bore, flanking the connecting housing
• Function: Provides radial support and axial control (shoulder shell) for the intermediate shaft
Over time, the intermediate shaft bearing shells may wear, lose geometry, or develop surface fatigue. Symptoms of failure include increased endplay (shaft axial movement), chain rattle, timing variation, and rapid wear of adjacent sprockets or tensioners.
This pair should be replaced during any engine rebuild, crankshaft pull, or when measurements show endplay outside specification. Installing fresh shells restores proper shaft location and timing stability for durable performance.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610113781
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005-08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Fits:
Porsche 986 Boxster 2.7L 2001 - 2004
Porsche 986 Boxster S 3.2L 2001 - 2004
Porsche 987-1 Boxster 2.7L 2005 - 2008
Porsche 987-1 Boxster S 3.2L 2005
Porsche 987-1 Boxster S 3.4L 2006 - 2008
Porsche 987-1 Cayman 2.7L 2005 - 2008
Porsche 987-1 Cayman S 3.4L 2006 - 2008
Porsche 996-1 Carrera 3.4L 2001
Porsche 996-1 Carrera 4 3.4L 2001
Porsche 996-2 Carrera 3.6L 2002 - 2004
Porsche 996-2 Carrera 4 3.6L 2002 - 2004
Porsche 996-2 Carrera 4S 3.6L 2002 - 2005
Porsche 996-2 Targa 3.6L 2002 - 2005
Porsche 997-1 Carrera 3.6L 2005 - 2008
Porsche 997-1 Carrera S 3.8L 2005 - 2008
Porsche 997-1 Carrera 4 3.6L 2006 - 2008
Porsche 997-1 Carrera 4S 3.8L 2006 - 2008
Porsche 997-1 Targa 4 3.6L 2007 - 2008
Porsche 997-1 Targa 4S 3.8L 2007 - 2008

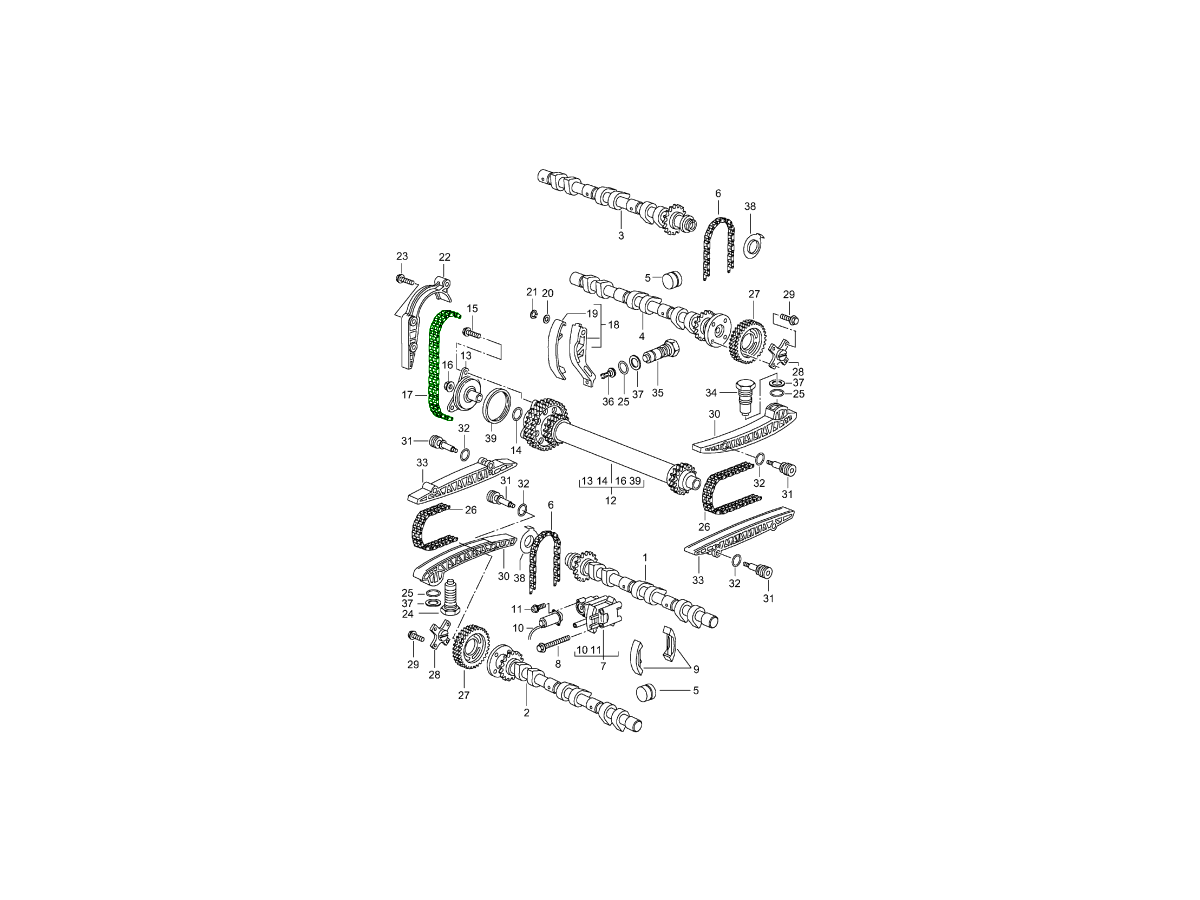

Diagram ref. 17

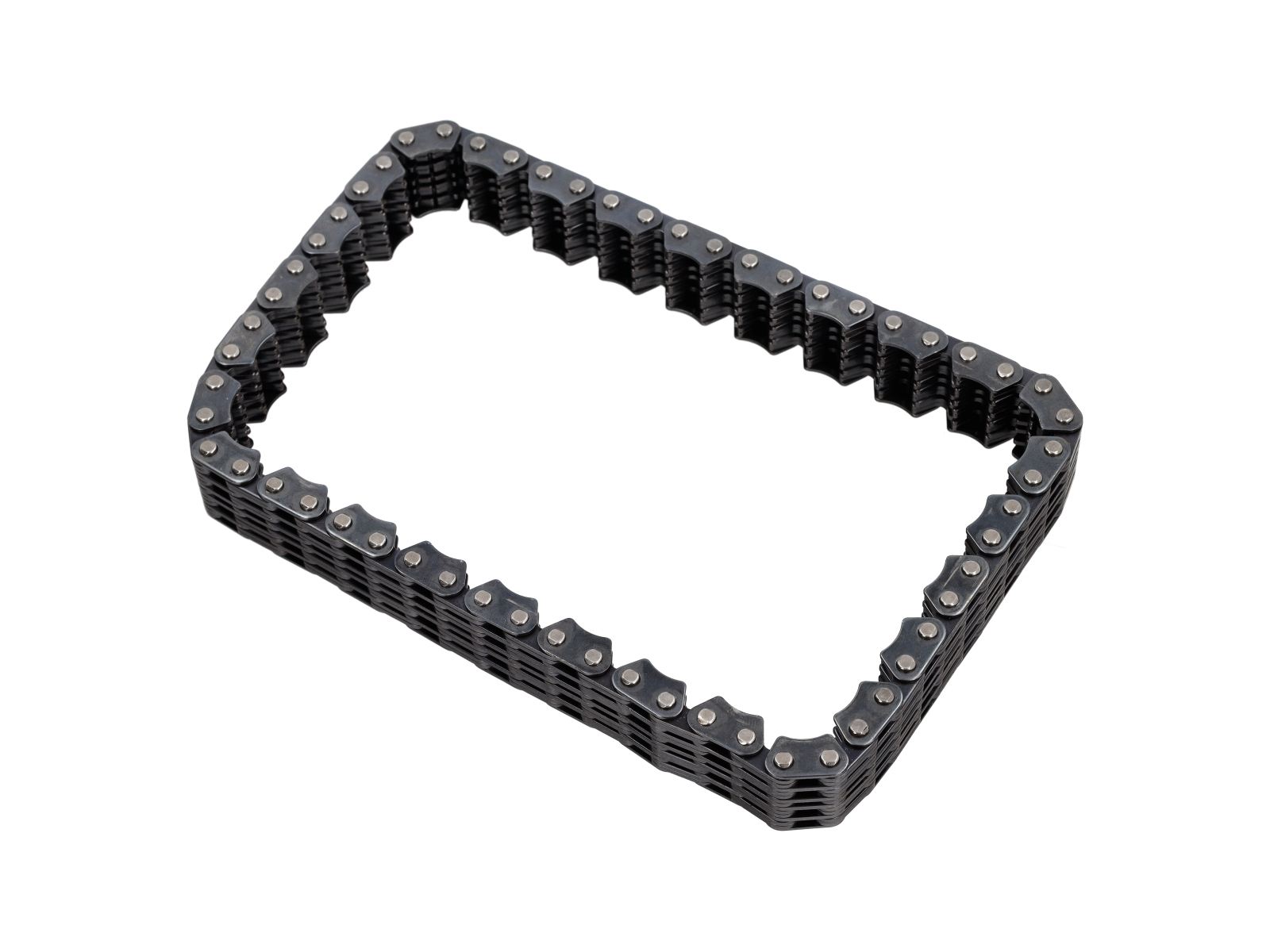

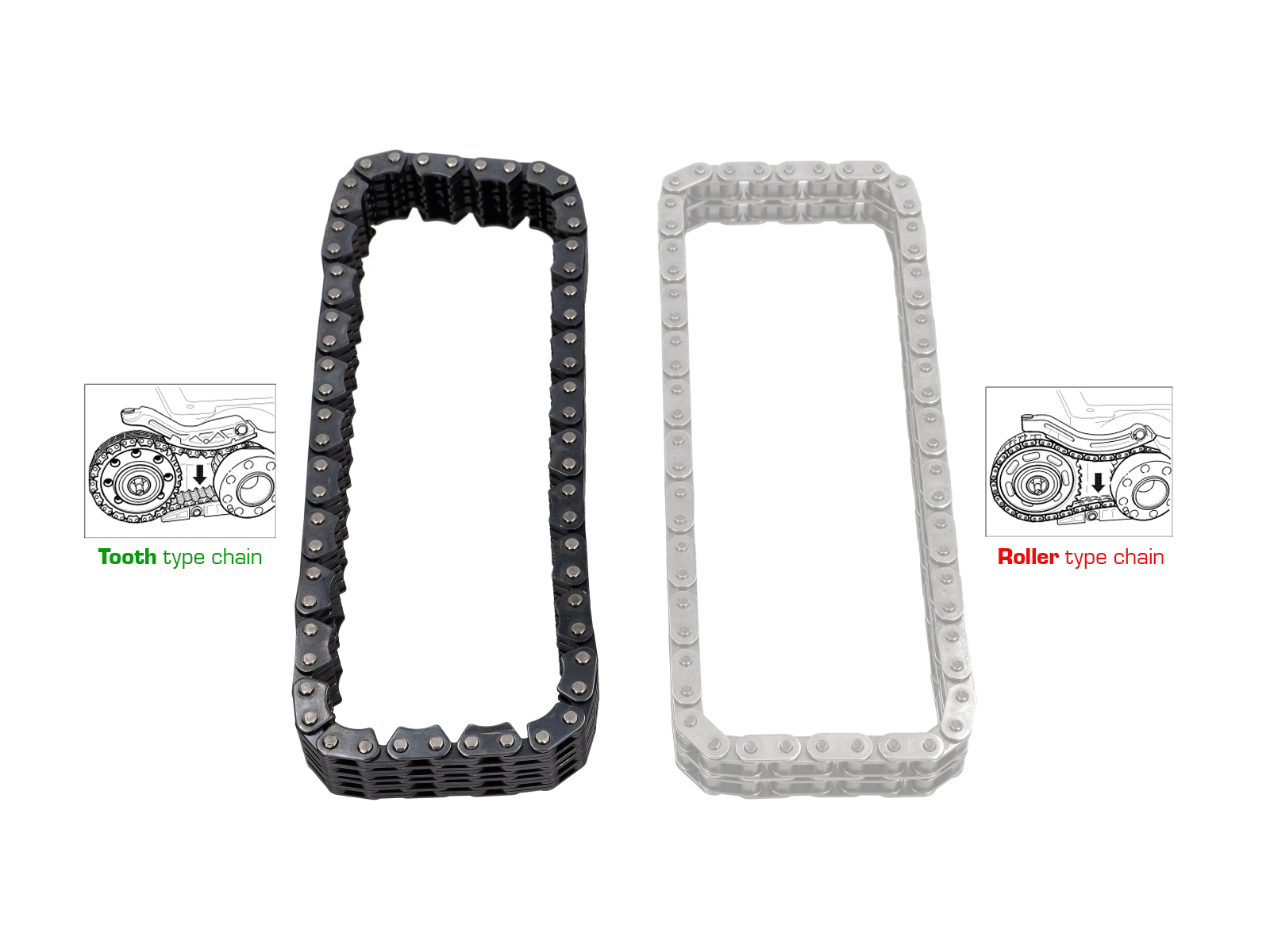

NOTE: For the 2001 model year, Porsche replaced the intermediate shaft's roller-type (duplex) chain with a tooth-type chain. This listing is for the later tooth-type chain and is not compatible with earlier engines equipped with the roller-type chain.
While unlikely, it's possible that an earlier engine may have been rebuilt and upgraded to use the newer chain design. For this reason, Design 911 strongly recommends confirming which type of chain your engine uses before placing an order. To assist with identification, our product images include a helpful comparison between the roller-type (duplex) chain and the tooth-type chain.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610517158
The product you are viewing cross references to these numbers
OEMatch Intermediate Shaft — Fit, Function, Confidence
OEMatch provides intermediate shaft parts and bearing kits for Porsche models, aimed at restoring timing integrity and supporting engine rebuilds or preventive maintenance. Parts and kits are selected to address known weak points in certain flat-six engines while maintaining compatibility with factory mounting points and lubrication paths.
Understanding OEMatch Intermediate Shaft
OEM (Original Equipment Manufacturer) parts are made by the same company that produced your Porsche’s original intermediate shaft.
OE (Original Equipment) refers to parts matching original specifications for the intermediate shaft and may be supplied by alternative manufacturers. Aftermarket parts offer alternative options, sometimes with enhanced features or better value. OEMatch supplies non-OEM intermediate shaft engineered as direct-fit alternatives to OEM parts, made to original-spec dimensions and tolerances for Porsche models.
The intermediate shaft links crank and cam timing on Porsche flat-six engines; it supports bearings and transmits rotation to maintain valve timing, balance and smooth power delivery. Wear or bearing damage can upset timing and lead to secondary engine damage.
Benefits Include
- Restored camshaft-to-crankshaft synchronization for consistent combustion and idling.
- Improved bearing durability through upgraded materials and clearer oiling paths.
- Reduced risk of debris circulation by replacing worn bearings and seals.
Why Intermediate Shaft Wear and Fail
- Bearing degradation caused by age, contamination or oil breakdown.
- Insufficient lubrication or oil-passage blockages leading to overheating.
- Metal fatigue and material weakness in earlier bearing designs.
The Importance of Replacing with OEMatch Intermediate Shaft
Addressing intermediate shaft wear promptly reduces the chance of catastrophic engine damage and limits secondary repairs. Replacing the shaft or bearing assembly during a rebuild or at the first sign of distress restores correct timing and helps maintain the characteristic balance of Porsche flat-six engines. Choosing appropriately specified parts simplifies installation and reduces the need for additional remedial work.
Advantages
- Parts selected for Porsche applications and engineered to original-spec dimensions where applicable.
- Options suitable for rebuilds, preventive maintenance or performance-oriented projects.
- Detailed product descriptions and part references to aid correct selection.
Support & Advice
Installation should be carried out by a qualified technician following model-specific procedures and torque settings. Use calibrated tools and new fasteners where specified. If you are uncertain about hidden sensors, oiling passages or alignment procedures, seek professional installation to avoid engine damage.
