- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>

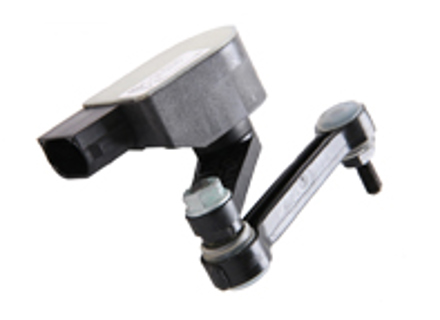

Suspension Ride Height Sensor product ref No. 95533107700
A suspension ride height sensor is an electronic component that measures the
distance between a vehicle’s chassis and its suspension or axle. It is
typically used in vehicles equipped with air suspension or adaptive suspension
systems. The sensor continuously tracks the vehicle’s ride height and transmits
this data to the suspension control module, which then adjusts the air springs,
dampers, or headlight levelling system as needed. One is required for each side Price is each
Symptoms of a Faulty Suspension Ride Height Sensor
Uneven vehicle stance: One corner or side of the vehicle sits higher or lower than the others. Dashboard warning light: A suspension or ride control fault indicator appears. Rough or unstable ride: The suspension fails to properly adjust to changing road conditions.
Fits:
Porsche 955 Cayenne 2003-06 (I1BK)
Chassis F >> 9P-4LA01 525
Chassis F >> 9P-4LA48 415
Chassis F >> 9P-4LA83 739
I1BK - Air suspension with levelling system and height adjustment (PASM)
Click 'Zoom in' for large parts diagram.
Diagram ref no 3
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95533107700
The product you are viewing cross references to these numbers
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10
- Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
- Porsche 958 Cayenne V6 3.0L Diesel (245Hp) 2010-17
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne S V8 4.2L Diesel (382Hp) 2010-17
- Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
- Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
- Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.1 Panamera Diesel V6 3.0L 2011-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
- Porsche 970.2 Panamera Diesel V6 3.0L (250Hp) 2014-16
Summary OE Match air suspension valve block for Porsche 970 Panamera and Cayenne 9PA / 92A models. This replacement valve block helps control air distribution within the suspension system, supporting correct ride height adjustment and air suspension operation. It is designed to match the original-style fitment and function, helping restore correct air flow control between the compressor, reservoir, and air suspension struts.
Fits:
Porsche Cayenne (9PA/92A), 2010-2016
Porsche Panamera (970) excluding hybrid, 2013-2018
Download the detailed installation instructions.
Diagram ref no 5
The valve block directs and regulates compressed air within the suspension system. It helps control air flow to each suspension circuit, allowing the vehicle to raise, lower, and maintain the correct ride height as required by the air suspension control system.
Functions
• Replaces the air suspension valve block
• Controls air distribution within the suspension system
• Helps regulate ride height adjustment
• Supports correct operation of air suspension struts
• Helps maintain even vehicle level and suspension response
• Suitable for air suspension fault repair and diagnosis
• OE Match replacement for Porsche air suspension service.
Why Replace This Part?
Air suspension valve blocks can fail due to internal leakage, worn seals, moisture contamination, corrosion, compressor debris, electrical faults, or age. A faulty valve block can cause uneven ride height, slow lifting, suspension warning messages, air leaks, compressor overrun, or one corner of the vehicle dropping after parking. Replacing the valve block helps restore correct air suspension pressure control and vehicle levelling.
When to Replace This Part
• Air suspension warning messages are present
• The vehicle drops on one or more corners when parked
• Ride height adjustment is slow, uneven, or not working
• Air leaks are found at or near the valve block
• Compressor runs too often or for too long
• Suspension does not hold the selected height
• Air suspension diagnostics indicate valve block failure.
Where it fits on the car
This valve block fits within the air suspension pneumatic control system on Porsche 970 Panamera and Cayenne 9PA / 92A models. Exact location can vary depending on model and suspension layout.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97035815304
The product you are viewing cross references to these numbers
