- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne S / GTS 4.8L 2007-10
- Porsche 957 Cayenne Turbo / Turbo S 4.8L 2007-10

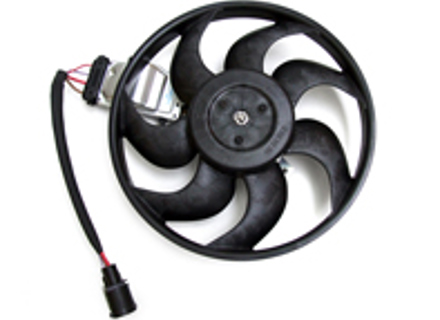

The OE Match Radiator Water Fan is a replacement electric cooling fan designed for selected Porsche Cayenne 955 and 957 models.
Mounted within the radiator cooling assembly, the electric fan draws air through the radiator and associated heat exchangers when additional airflow is required. This is particularly important when the vehicle is stationary, travelling slowly or operating under conditions where natural airflow through the front of the vehicle is insufficient.
By increasing airflow through the radiator, the fan helps remove heat from the engine coolant and supports stable operating temperatures. It also contributes to cooling-system and air-conditioning performance under demanding conditions.
The OE-equivalent fan is the smaller of the two radiator cooling fans, with the original Porsche specification listed at 300W and incorporating the fan's electronic output-stage control module.
Fits:- Porsche 955 Cayenne 2003-06
- Porsche 957 Cayenne 2007-09
Diagram Ref No 18
What This Product Does:
The radiator fan provides forced airflow through the cooling pack when vehicle speed alone does not provide sufficient air movement.
Its functions include:
- Drawing cooling air through the radiator.
- Helping remove heat from the engine coolant.
- Supporting stable engine operating temperature.
- Providing additional cooling when the vehicle is stationary.
- Increasing airflow during slow-speed driving.
- Supporting cooling during high ambient temperatures.
- Helping manage temperatures when the engine is under increased load.
- Supporting condenser airflow for the air-conditioning system.
- Working with the vehicle's electronic cooling controls to vary fan operation as required.
- Replacing a seized, noisy, damaged or electrically failed original fan.
The cooling system depends on both coolant circulation and airflow. Even with a good radiator and water pump, insufficient airflow can allow temperatures to rise when the vehicle is not moving quickly enough to force air through the radiator naturally.
Symptoms Of Wear Or Failure:
Possible symptoms include:
- Engine temperature rising while stationary.
- Temperature increasing in slow-moving traffic.
- Engine temperature returning towards normal once vehicle speed increases.
- Cooling fan failing to operate when required.
- Fan operating intermittently.
- Fan running only at certain speeds.
- Fan remaining permanently on.
- Excessive fan noise.
- Grinding or scraping noises from the fan motor.
- Squealing from the fan bearing area.
- Fan blades rotating slowly.
- Fan failing to reach normal speed.
- Visible wobble while the fan is operating.
- Damaged or cracked fan blades.
- Fan contacting its shroud.
- Cooling-system warning messages.
- Engine overheating.
- Air-conditioning performance becoming poor while stationary.
- Blown cooling-fan fuse.
- Electrical fault codes relating to fan control.
- Burnt electrical smell from the fan or control electronics.
These symptoms can also be caused by coolant-system, wiring, sensor or control faults, so proper diagnosis should be carried out before replacement.
Why Replacement Matters:
The electric fan is a critical part of maintaining correct engine temperature when airflow through the radiator is limited.
A weak or non-operational fan can allow coolant temperature to rise beyond the intended operating range.
Replacing a faulty fan helps restore:
- Correct radiator airflow.
- Stable engine temperature.
- Reliable low-speed cooling.
- Improved cooling during idling.
- Correct air-conditioning condenser airflow.
- Consistent electronic fan control.
- Reduced risk of overheating.
- Reliable operation of the complete cooling system.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95562413401
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
The Series Resistor (OEM Part Number 996.616.101.00) is an essential component in the cooling system of Porsche 986 Boxster and 996 Carrera models. It controls the speed of the auxiliary radiator fan, allowing for both low and high-speed operation to keep your engine running at optimal temperatures.
Fits:
Porsche 986 Boxster 1997 - 2004
Porsche 996 C2 / C4 / C4S 1998 - 2005
Porsche 996 GT3 / GT3 RS 1999 - 2005
Diagram Ref No 4.
Why Replace Your Series Resistor?
Over time, heat and wear can cause the resistor to fail, leading to:
• Low-Speed Fan Failure: The fan may stop operating at low speeds, causing the engine temperature to rise.
• Erratic Fan Operation: The fan could run intermittently or at incorrect speeds, reducing cooling efficiency.
• Risk of Overheating: Poor cooling can result in engine overheating, potentially damaging critical components.
Common Symptoms of a Failing Resistor
• Fan Speed Issues: One fan may only operate at high speed, indicating a faulty resistor.
• Complete Fan Failure: In some cases, the fan may not activate at all.
• Persistent Engine Heat: Consistently high engine temperatures can signal a failing resistor.
Replacing a worn or damaged series resistor ensures your Porsche maintains proper cooling performance and protects your engine from overheating.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99661610100
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Restore efficient engine cooling and dependable temperature control with this OE Match Water Coolant Radiator, designed for compatible Porsche applications.
Fits:
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Radiator fluid, or coolant, is the most important part of your car's cooling system, which protects your engine from overheating. Low coolant can lead to a breakdown and expensive repairs.
The radiator is one of the principal components of the engine cooling system. Hot coolant leaving the engine passes through the radiator's internal channels, where heat is transferred through the radiator core and dissipated into the surrounding airflow. The cooled fluid then continues through the cooling circuit to help maintain the engine within its intended operating temperature range.
Porsche cooling systems operate under demanding conditions, and the radiator must withstand constant thermal cycling, cooling-system pressure, road debris and environmental contamination. Over time, the core can become damaged or restricted, while corrosion, deteriorated joints or physical impact can cause coolant leaks.
A failing radiator can reduce the cooling system's ability to control engine temperature and may eventually result in coolant loss or overheating. Replacing a damaged, leaking or inefficient unit with this OE Match Radiator helps restore cooling performance and protect the engine from excessive temperatures.
Diagram Ref No 1
What This Product Does:
Symptoms Of Wear Or Failure:
Why Replacement Matters:
- The radiator is responsible for releasing a substantial amount of the heat absorbed by the engine coolant.
- If its ability to dissipate heat is reduced, coolant may return to the engine at a higher temperature than intended. If the radiator also leaks, the cooling system may gradually lose coolant and eventually become unable to control engine temperature effectively.
- Replacing a defective radiator before severe overheating occurs can prevent substantially more expensive repairs.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610613
The product you are viewing cross references to these numbers
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
Radiator for water coolant fluid (also known as Coolant radiator, Water radiator or Water coolant fluid cooler) is the backbone of a Porsche engine’s thermal management system. It dissipates heat from the engine’s water-based coolant, stabilising engine temperatures, preserving performance, efficiency, and long-term reliability.
Fits:
Porsche 986 Boxster 3.2L 2000 - 2004
Porsche 996 C2 / C4 / C4S / GT3 1998 - 2005
This product supersedes Porsche's old part numbers: 99610603750, 99610603751, 99610603752
Diagram Ref No 1.
The radiator’s main role is to remove heat from the engine coolant that carries thermal energy away from the engine block and cylinder head. Hot coolant flows into the radiator, where it travels through a series of fine tubes and cooling fins. Air passing through the radiator core (from vehicle motion and fans) absorbs the heat, lowering coolant temperature before it returns to the engine.
Proper heat rejection helps:
• Maintain optimal engine operating temperature
• Prevent overheating under everyday and high-load conditions
• Support fuel efficiency and emission control
• Preserve engine component durability and longevity
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610603753
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
This OE Match Water Radiator Set includes both left and right water radiators - designed as direct-fit replacements for the original factory cooling cores on Porsche 996 (911) & 986 Boxster models. Together they form the central cooling system components responsible for controlling engine temperature and preventing overheating.
SET OF 2
Fits:
Porsche 996 C2 / C4 / GT3 1997 - 2005
Porsche 986 Boxster 1997 - 2004
The cooling system of the Porsche 996 and 986 is based on two radiators (left and right) that effectively remove heat from the engine coolant under all operating conditions, from everyday driving to dynamic use on the road.
Each radiator is engineered to match original Porsche specifications for:
• Core dimensions and fin density
• Mounting points and hose connections
• Coolant flow capacity
• Heat transfer performance
This OE Match radiator set delivers balanced cooling and thermal stability by replacing both cores at once, ensuring equal efficiency on each side of the system. Manufactured from high-quality materials with durable aluminium cores and corrosion-resistant tanks, these radiators offer long service life and effective heat rejection with reliable fitment.
Direct replacement for the original Porsche components, this set installs using the existing mounting brackets, hoses, and hardware, making it ideal for cooling system overhauls, radiator failure replacement, or preventative maintenance on higher-mile vehicles.
A failing radiator can lead to engine overheating, coolant loss, reduced performance, and even engine damage if left unaddressed. Symptoms such as rising temperature gauge readings, coolant leaks, or steam from the engine bay indicate a compromised cooling core. Replacing both radiators as a matched set ensures consistent cooling efficiency and balanced performance across the entire system.
Replace this radiator set if you notice:
• Persistent engine overheating
• Leaks or corrosion on radiator cores
• Bent, dented, or clogged cooling fins
• Reduced heater performance
• After front-end collision or cooling system service
• During routine coolant system overhaul
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
RADKIT99606.OEM
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
