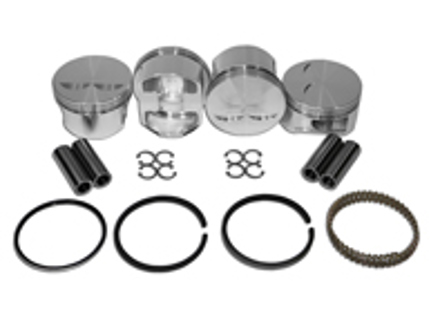

Piston Set, Forged JE 2.0, 24mm pin. Porsche 914/ VW Type 4 - VW10
VW10
Vehicle Group
- Porsche 914 (1970-1976)
Information
This is a new set of Type 4 flat top JE Pistons.
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Stroke: 71 to 78mm
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 pins, 4 clips and a set of rings
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Stroke: 71 to 78mm
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 pins, 4 clips and a set of rings
Prices from: €930.16
Related products
Vehicle Group
- Porsche 914 (1970-1976)
Information
This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons and cylinders.
JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
Price: €1,186.93
In stock
Vehicle Group
- Porsche 914 (1970-1976)
Information
This is a new set of Type 4 2.0 liter 96mm stroker flat top JE Pistons and Cylinders.
JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins. It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins. It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 78 to 86mm
Cylinders: cast iron
Pistons: Forged JE
Compression Height: 30.08mm
Pin: 22mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
Price: €1,186.93
Orderable
Vehicle Group
- Porsche 914 (1970-1976)
Information
This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons with Biral cylinders.
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better.It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Biral
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. Biral Liners are a cast iron sleeve with aluminium fins, making them lighter and dissipate heat better.It is a Slip in kit no machine work is needed.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2000cc
Stroke: 71 to 78mm
Cylinders: Biral
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
Price: €1,118.76
In stock
