- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 356C 1963-65
- Porsche 914 (1970-1976)

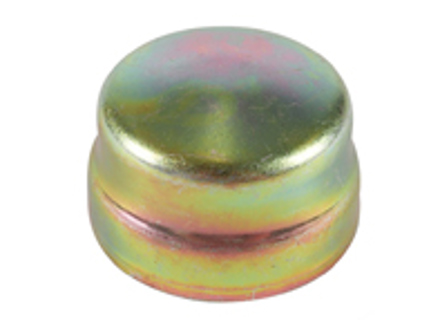

This OE Match front wheel hub end cap is a replacement protective cap for the front wheel hub assembly on classic Porsche 911, 356, and 914-6 models. This cap helps cover and protect the front wheel hub assembly, supporting wheel bearing protection and correct classic Porsche front axle detail.
Sold individually, 2 required per car, where fitted to both front hubs
Fits:
Porsche 356C (1.6) 01/1963 - 12/1965
Porsche 911 (2.0-2.7) 01/1963 - 07/1973
Porsche 914/6 (2.0) 11/1969 - 12/1973
Diagram ref no 33
The front wheel hub end cap covers the outer hub area and helps protect the wheel bearing components from dirt, moisture, and road debris. A correctly fitted cap helps keep grease contained within the hub area and supports long-term bearing reliability.
Functions
• Replaces the front wheel hub end cap
• Helps cover and protect the front hub assembly
• Helps keep dirt, water, and road debris away from the wheel bearing area
• Supports wheel bearing grease retention
• Restores correct OE-style front hub appearance
• Replaces missing, dented, corroded, loose, or damaged original caps
• OE Match replacement for classic Porsche front axle service and restoration.
Why Replace This Part?
Front wheel hub end caps can become dented, corroded, loose, damaged, or lost during wheel bearing service, brake work, hub removal, or previous repairs. A missing or damaged cap can allow contamination into the hub area, which may shorten wheel bearing life or cause premature wear. Replacing the cap helps restore correct protection and a clean original-style finish.
When to Replace This Part
• The original hub end cap is missing, loose, dented, or corroded
• Front wheel bearings have been serviced or replaced
• Grease leakage or dirt contamination is visible around the hub
• Brake disc, hub, or front suspension work is being carried out
• The front axle area is being restored
• Incorrect or non-original hub caps have been fitted
• Correct OE-style front hub detail is required
Where it fits on the car
his end cap fits on the front wheel hub assembly on Porsche 911 models up to 1973, Porsche 356, and Porsche 914-6 models. It covers the outer hub and bearing area according to the factory front axle layout.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91434138400
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 914 (1970-1976)
Wheel Hub Stud, Standard
Sold each
Replace damaged or worn wheel mounting hardware with this OE
Match Standard Wheel Hub Stud. Wheel studs are pressed into the hub and provide the
threaded mounting points for the wheel nuts. Their condition is essential for
securely locating and retaining the wheel against the hub.
Fits:
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 914 (1970-1976)
What Does a Wheel Hub Stud Do?
Each wheel stud passes through the hub and provides a strong threaded fixing for the wheel nut.
When the wheel nuts are correctly tightened, the studs provide the clamping force required to securely hold the wheel against the hub.
A correctly functioning wheel stud helps:
- Secure the wheel to the hub
- Provide the mounting thread for the wheel nut
- Maintain correct wheel clamping force
- Allow safe wheel installation and removal
- Keep the wheel correctly seated against the hub
Why Do Wheel Hub Studs Fail?
Wheel studs are strong components but can become damaged through repeated wheel removal, incorrect tightening or corrosion.
Common causes include:
- Damaged or stripped threads
- Cross-threaded wheel nuts
- Excessive wheel nut torque
- Corrosion Impact damage
- Incorrect wheel installation
- Repeated use of unsuitable tools
- General wear from frequent wheel changes
Using an impact wrench incorrectly or overtightening wheel nuts can stretch or damage the stud and its threads.
When Should a Wheel Stud Be Replaced?
Replacement should be considered if:
- Threads are stripped or damaged
- A wheel nut will not tighten correctly
- The stud is bent or distorted
- Heavy corrosion is present
- The stud has been cross-threaded
- A stud has broken
- The stud is loose within the hub
- Damage is discovered during wheel or brake servicing
A damaged wheel stud should not be reused, as correct wheel clamping depends on the condition of both the stud and wheel nut.
Important Wheel Mounting Checks
When replacing a wheel stud, inspect the wheel nut and hub for corresponding damage.
Wheel nuts should thread smoothly onto the studs by hand before final tightening. Always tighten wheel nuts to the correct specified torque.
If several studs show similar corrosion or thread damage, inspect the remaining studs and consider replacing any that are no longer serviceable.
Wheel Studs
Wheel studs are an essential part of the wheel and hub assembly on many classic and modern-classic Porsche models.
Although designed for long service life, repeated wheel removal, corrosion, cross-threading and excessive tightening can eventually damage the threads or weaken the stud.
When carrying out wheel, brake or hub maintenance, each stud should be inspected for damaged threads, corrosion or distortion. Replacing defective studs helps ensure the wheel can be correctly and securely mounted.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99333167104
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 914 (1970-1976)
Fits:
Porsche 911 1968 to 1973
Porsche 914-6 1970 to 1972
Click 'Zoom in' for large parts diagram.
Diagram ref no 8
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90134106510
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 928GTS 5.4L 1992-95
- Porsche 356 1950-55
- Porsche 356A 1955-59
- Porsche 356B 1959-63
- Porsche 356C 1963-65
- Porsche 914 (1970-1976)
- Porsche 912E 4CYL 1976
Diameter (RD):14.6mm
Height head (A):5.0mm
Height knurl (B):9.0mm
Head diameter (D1): 20mm
Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 944 1982-91
Porsche 968 1992-95
Porsche 928 1978-95
Porsche 924 1977-88
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
993341671
The product you are viewing cross references to these numbers
