- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L

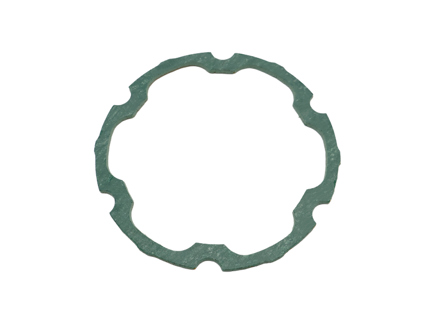

This OE Match driveshaft gasket is a replacement gasket used at the CV joint and driveshaft flange connection on classic Porsche 911 models. It is designed to match the original Porsche-style fitment and provides a clean sealing surface between the CV joint and flange.
Sold individually
Fits:
Porsche 911 1974 - 1986
Diagram ref no 13
The driveshaft gasket sits between the CV joint and the gearbox or driveshaft flange, helping to seal the joint and protect the connection from grease loss and contamination. It supports correct drivetrain assembly and helps maintain smooth power transfer through the rear axle.
Functions
• Seals the connection between the CV joint and driveshaft flange
• Helps prevent CV grease from escaping the joint
• Helps keep dirt, moisture, and road debris away from the joint face
• Supports correct rear axle and driveshaft assembly
• Helps maintain smooth drivetrain operation
• Provides an OE Match replacement for the original gasket
• Suitable for use during CV joint, driveshaft, or rear axle service
The driveshaft gasket can become compressed, torn, oil-soaked, brittle, or damaged during driveshaft removal. A worn or missing gasket may allow grease to escape from the CV joint area or allow contamination into the joint face, which can lead to noise, vibration, or accelerated CV joint wear. Replacing the gasket during service helps restore a reliable seal and ensures the driveshaft connection is assembled correctly.
When to replace
• This Part The CV joint or driveshaft has been removed
• The gasket is torn, flattened, brittle, or missing
• Grease is leaking from the CV joint/flange connection
• Dirt or moisture has entered the joint area
• The rear axle or driveshaft is being serviced A CV joint boot, axle, or flange is being replaced
• As preventative maintenance during drivetrain repairs
Where it fits on the car
This gasket fits on the rear drivetrain assembly, between the CV joint and the gearbox or driveshaft flange. It is part of the rear axle/driveshaft connection and is typically required at each CV joint flange location.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
92333229700
The product you are viewing cross references to these numbers
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
Fits:
Porsche 996 C4 / C4S
Porsche 996 Turbo
Porsche 997.1 C4 / C4S
Porsche 997.1 Turbo
Porsche 997.2 C4 / C4S
Porsche 997.2 Turbo
Click 'Zoom in' for large parts diagram.
Diagram ref no 8
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99634903000
The product you are viewing cross references to these numbers
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
- Porsche 997 MKII GT2 RS 2011-13
Fits:
Porsche 997 Carrera 4 3.6L 2005>>
Porsche 997 Carrera 4S 3.8L 2005>>
Porsche 997 TURBO 2007>>
Porsche 997 GT2 2007>>
Porsche 997 MKII Carrera C4 3.6L 2009>>
Porsche 997 MKII Carrera C4S 3.8L 2009>>
Porsche 997 MKII Turbo 2009>>
Porsche 997 MKII GT2 RS 2011>>
Price is for each Driveshaft.
This product supersedes Porsche's old part numbers:
- 99734903800
- 99734903801
- 99734903802
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99734903803
The product you are viewing cross references to these numbers
