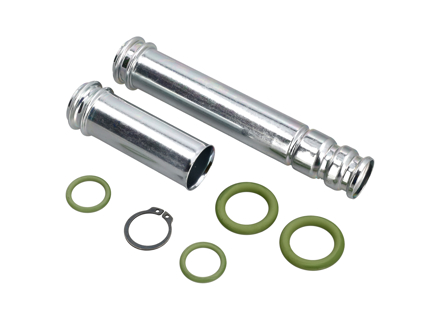

Collapsible oil tube kit for Porsche 911, 964 and 993 engines. Supplied as an assembled return tube with associated sealing components, intended as a direct-fit replacement where the original oil return tube has aged or started to leak.
Overview & Construction
This kit uses a telescopic tube design to mirror the layout of the original return assembly between the cylinder head/oil galleries and the crankcase or external oil tank, depending on application. The collapsible section allows the tube to be installed without splitting the crankcase, while the included O-rings and circlip provide axial retention and a radial seal at each end. The construction is aimed at withstanding typical air-cooled engine temperatures, oil exposure and vibration so that the tube can maintain a stable sealing interface over repeated heat cycles.
- Collapsible/telescopic tube body for in-situ installation
- Sealing rings for both ends of the tube
- Circlip for tube location and retention (where applicable)
- Designed around original routing and connection points on 911, 964 and 993 engines
- One kit services a single oil return position; four tubes are normally used per engine
Operational Symptoms
- Oil drips or wetness along the oil return tubes or at their joints to the crankcase or cam carrier
- Oil residue on heat exchangers, undertrays or the lower engine casing
- Smell of hot oil after driving, sometimes with light smoke where oil contacts hot exhaust parts
- Progressive oil consumption not explained by external gaskets or top-end components
- Leaks that become more evident after long, hot runs when oil is at full temperature
Replacement Rationale
On older air-cooled engines, rigid or early-pattern tubes can harden, corrode or lose tension at the sealing interfaces, leading to external leaks or reduced return flow from the heads back to the sump or tank. Replacing a tired tube with a collapsible assembly allows the return line to be renewed with the engine in situ, restoring a defined oil path and fresh sealing surfaces at both ends. This helps maintain predictable oil circulation, reduces the risk of oil mist on hot components, and can be combined with other oil system work during rebuilds or top-end refreshes to minimise repeat access.
Compatibility
- Porsche 911 2.0L 1965–1969
- Porsche 911 1970–1989
- Porsche 964 1989–1994
- Porsche 993 1994–1998
Support & Advice
Check the condition of all four return tubes when the engine is accessible, as similar age and exposure often mean that multiple tubes show seepage at the same time. Confirm fitment against your specific model year and engine variant before installation, and ensure all sealing surfaces are clean, undamaged and free from old O-ring material prior to assembly.
Search Context
Search context: Many searches use terms like 'genuine' or 'OEM'. This part is a compatible replacement engineered to match original specifications. It is not a Porsche Genuine Part.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010704001
