Porsche
Diagrams
991 (911) MK1 2012-2016
991.1 GT3 3.8L (475 Bhp) 2014-16
Transmission
limited slip differential 911 (991) GT3 CUP 2018 - 2019
Enter valid search criteria before proceeding with the request
➜
301-000
Coupling - G9190+, PR:486 - 991 R/GT3/RS 2014-21
301-005
Clutch release / Clutch slave cylinder - G9190+, PR:486 - 991 R/GT/GT3 2014-21
302-000
Replacement transmission - G9190+, PR:486 - 991 R/GT/GT3 2014-21
302-005
Manual gearbox / Individual parts - G9190+, PR:486 - 991 R/GT/GT3 2014-21
302-010
Manual gearbox / Individual parts - G9190+, PR:486 - 991 R/GT3/RS 2014-21
302-015
Manual gearbox / Heat exchanger / Oil pipe / Water pipe 991 R/GT/GT3 2014-21
306-000
Transmission suspension / Threaded joint (Model: CG190,CG195,CG192,G9190) 991 R/GT3/RS 2014-17
320-000
- PDK - Gearbox (Model: CG190,CG192,CG195) 991 R/GT/GT3 2014-21
320-005
- PDK - Gearbox / Individual parts (Model: CG190,CG192, CG195) 991 R/GT/GT3 2014-21
320-010
- PDK - Gearbox / Clutch for dual clutch / Gearbox (Model: CG190,CG192,CG195) 991 R/GT/GT3 2014-21
360-000
- PDK - Gearbox / Heat exchanger / Oil pipe / Water pipe (Model: CG190,CG192,CG195) 991 R/GT/GT3 2014-21
➜

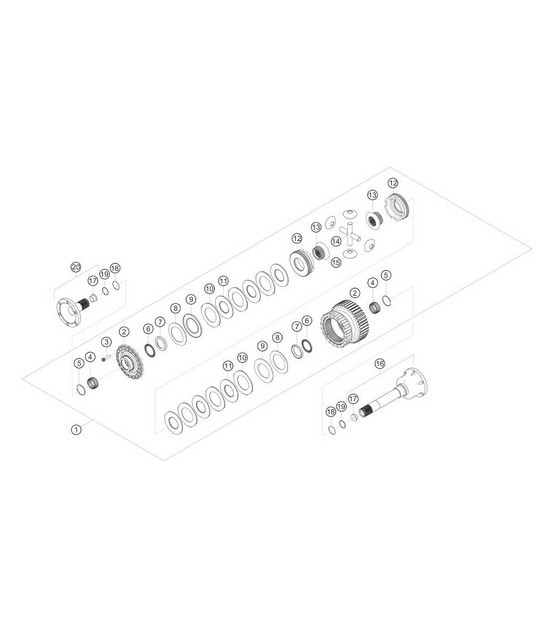

limited slip differential 911 (991) GT3 CUP 2018 - 2019 - PORSCHE
Click the image numbers to view product info
SKU: 9913320859L, as lock.differential
SKU: 9913320899E, as housing differential
SKU: 9913320899E, as housing differential
SKU: 9913328289B, hexalobular screw m8x1
SKU: 99920112800, needle bush 35x40x17 d 5405 100cr6/st
SKU: 99920112800, needle bush 35x40x17 d 5405 100cr6/st
SKU: 9913329979A, snap ring
SKU: 9913329979A, snap ring
SKU: 9913329719A, axial needle bearing
SKU: 9913329719A, axial needle bearing
SKU: 9913329739D, ring
SKU: 9913329739D, ring
SKU: 9913329759B, disk spring 1 2750n
SKU: 9913329759B, disk spring 1 2750n
SKU: 9913329779A, thrust ring
SKU: 9913329779A, thrust ring
SKU: 9913329849M, pressure plate outer 1,95mm,SKU: 9913329849K, pressure plate outer 1,90mm,SKU: 9913329849J, pressure plate outer 1,85mm,SKU: 9913329849H, pressure plate outer 1,80mm,SKU: 9913329849F, pressure plate outer 1,75mm,SKU: 9913329849E, pressure plate outer 1,70mm,SKU: 9913329849D, pressure plate outer 1,65mm,SKU: 9913329849C, pressure plate outer 1,60mm,SKU: 9913329849B, pressure plate outer 1,55mm,SKU: 9913329849A, pressure plate outer 1,50mm
SKU: 9913329849M, pressure plate outer 1,95mm,SKU: 9913329849K, pressure plate outer 1,90mm,SKU: 9913329849J, pressure plate outer 1,85mm,SKU: 9913329849H, pressure plate outer 1,80mm,SKU: 9913329849F, pressure plate outer 1,75mm,SKU: 9913329849E, pressure plate outer 1,70mm,SKU: 9913329849D, pressure plate outer 1,65mm,SKU: 9913329849C, pressure plate outer 1,60mm,SKU: 9913329849B, pressure plate outer 1,55mm,SKU: 9913329849A, pressure plate outer 1,50mm
SKU: 9913329818B, clutch disk inner 1,40mm
SKU: 9913329818B, clutch disk inner 1,40mm
SKU: 9913329879B, set thrust piece
SKU: 9913329879B, set thrust piece
SKU: 9913329919E, bevel gear
SKU: 9913329919E, bevel gear
SKU: 9913329959B, cross pin
SKU: 9913329939D, bevel pinion
SKU: 9913320209D, as joint flange
SKU: 9913322159B, sealing plug
SKU: 9913322159B, sealing plug
SKU: 9913329019A, snap ring
SKU: 9913329019A, snap ring
SKU: 99970719640, sealing ring 23,00x1,5 s* fpm 70
SKU: 99970719640, sealing ring 23,00x1,5 s* fpm 70
SKU: 9913320219E, as joint flange
+
−
↺
3.3-16
